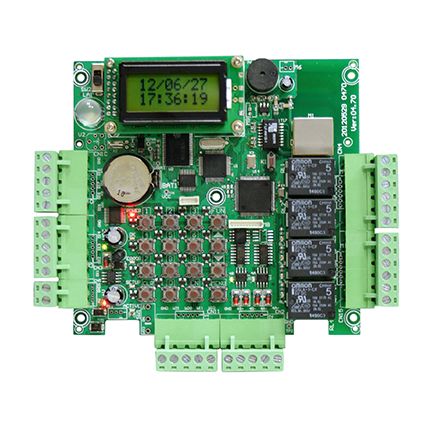

Multi-Door Network Controller(PCB) SY330NT-N-PV5A

Multi-Door Network Controller(PCB) SY330NT-N-PV5A

  • SY330NT-N-PV5A
  • SYRIS
Giá : Liên hệ

• Stand alone or Networking system.
• Built-in Anti-Tamper protection / Buzzer.
• Use LCD display reader can show card holder name. (English: 12 Char word or Chinese:6 Char word)
• Advanced programmable functions for different level within groups to maximize
management control.
• Support multiple proximity, keypad, biometrics, smart card and RS485 / wiegand reader.
• Versatile software features support wide range functions.
• Capability of connecting external backup power supply for emergency.
• Can be off-line use or on-line use.
• Externally programmable interface.

Number of Cards25,360 cards
Capacity of Records55,500 records
Number of Readers4 ( 2 In / 2 Out ) / 8 ( 4 In / 4 Out )
Door Control2 Door / 4 Door
Relay Output2/4 Relays
Input Points8
(Expandable to 128) (DI5~ DI8 and W3~W4 shared)
CommunicationRS485 x 2 , Wiegand x 2/4,RJ45,Wi-Fi
Wiegand Input Points2/4 (compatible with 26/32/34/35/37/42/50/66 bit)
Buad Rate115,200bps ( 4,800 ~ 115,200bps)
Group and APPSet / Holidays64 groups / 366 holidays
Timer / Time zone32 timer / 60 time zone
Controller ID0001-9999
Beep ToneBuilt-in Buzzer (Max 0.5W)
Anti-passbackUp to 3 level of local control or group Anti-passback
Keypad16 keys
LED Indicator8 LED
LCD Display8 x 2 character
Input Voltage / Consumption8V ~ 24V DC / 0.5W ~ 2.5W
Operating / Storage Temperature-20˚C ~ +70˚C / -40˚C ~ +80˚C
Dimensions(mm)122.5W x 117H x 25D
Ordering Information
•SY330NT2-N-PV5A : 2 Door Network Controller(PCB)-V5A
•SY330NT4-N-PV5A : 4 Door Network Controller(PCB)-V5A
