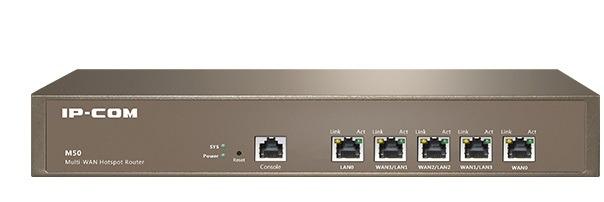

Multi-WAN Hostpot Router IP-COM M50
- IP-COM M50 là thiết bị định tuyến đa cổng WAN.
- Cổng kết nối: 1 cổng Gigabit WAN, 3 cổng Gigabit WAN/LAN, 1 cổng Gigabit LAN, 1 cổng RJ45 Console.
- CPU: ARM dual core 800MHz.
- RAM: 512 MB.
- Flash: 128MB.
- Chịu tải: 200 thiết bị.
- Quản lý: 100APs.
- Số phiên làm việc: 55000.
- Tính năng:
+ Cân bằng tải 4 mạng WAN;
+ Xác thực người dùng qua Captive portal hoặc PPPoE server;
+ Kiểm soát băng thông thông minh;
+ Máy chủ VPN PPTP/L2TP/IPSec;
+ Quản lý Access Point qua AP Controller.
- Nguồn điện: 100-240V 0.7A 50/60Hz
- Kích thước: 294x178.8x44 mm.
Đặc tính kỹ thuật
| Model | M50 |
| Hardware Specifications | |
| Dimension | 440x285x44 mm |
| CPU | 800MHz Dual core |
| RAM | 512MB |
| FLASH | 128MB |
| Interfaces | 5xGE(1~4 WAN/ 4~1 LAN) 1xRJ45 Console |
| Power | 100-240V 0.7A 50/60Hz |
| Software Specifications | |
| Max user capacity | 200 |
| Max New sessions | 3900 |
| Max Concurrent Sessions | 55000 |
| MAX AP Manage number | 100APs |
| Internet Connection Type | PPPoE/DHCP/Static IP |
| Authrization Service | Captive Portal, PPPoE |
| Captive Portal | 300 Portal Accounts Customize E-bulletin |
| PPPoE Server | 100 PPPoE Accounts Customize E-bulletin |
| Bandwidth Control | Smart Bandwith Control Manual Definition |
| Internet Access Control | IP/mac/URL Filter |
| VPN Protocal | PPTP, L2TP, IPSEC |
| Port Forwarding | Port Forwarding DMZ |
| Security Setting | IP-MAC Binding ARP Attack Protection |
| DDNS | Dyndns/No-Ip |
| UPNP | Support |
| Firmware Upgrade | Local firmware update Online Firmware update |
| System Tool | Schedule Reboot Restore or Backup Configuration |
| Network Status View | User Statistics Traffic Statistics System Log |
- Bảo hành: 24 tháng.
