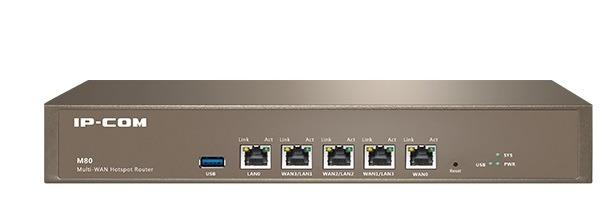

Multi-WAN Hostpot Router IP-COM M80
- IP-COM M80 là thiết bị định tuyến đa cổng WAN.
- Cổng kết nối: 1 cổng Gigabit WAN, 3 cổng Gigabit WAN/LAN, 1 cổng Gigabit LAN, 1 cổng USB3.0.
- CPU: ARM Double core 1.4GHz.
- RAM: 4Gb.
- Chịu tải: 300 thiết bị.
- Tính năng:
+ Nhiều phương thức xác thực truy cập: Xác thực nhanh WEB, xác thực qua Wechat hoặc SMS, xác thực qua máy chủ PPPoE hoặc tài khoản WEB.
+ Quản lý băng thông thông minh.
+ Hỗ trợ QVlan, cấu hình tối đa 15 QVlan.
+ Nhiều chức năng thiết thực hơn: VPN, Load Balancing 4 WAN, chia sẻ tệp qua USB, chế độ khách sạn.
+ PPTP/ L2TP/ IPSec Server.
- Nguồn điện: 100-240V 50/60Hz.
- Kích thước: 294x178.8x44 mm.
Đặc tính kỹ thuật
| Model | M80 |
| Hardware Paramenters | |
| CPU | ARM Double core 1.4GHz |
| RAM | 4Gb |
| Flash | 1Gb |
| Ports | 5xGE (Max 4 WAN, Max 4 LAN ), 1xUSB |
| Dimensions (LxWxH) | 294x178.8x44 (mm) |
| Power | Build-in power switch |
| Enviorment | Working Temperature: 0~40°C Storage Temperature: -40~70°C Working Humidity: 10%~90%RH Storage Temperature: 5%~90%RH |
| Software Paramenters | |
| Working Model | Rounter Model |
| AC Function | Manage all AP of IP-COM |
| Behavior Management | Base on URL,Base on IP/MAC address |
| Access Authentication | WEB authentication, WeChat authentication, PPPoE server authentication |
| Network Speed Control | Intelligent Control, Custom Control |
| VPN | PPTP, L2TP, IPSEC |
| Virtual Server | DMZ, Port mapping, DDNS, UPNP |
| USB Application | USB File sharing |
| Security Setting | IP-MAC Binding, attack defense |
| Static Rounter | Supports |
| LAN Port VLAN | Supports QVLAN |
| iCloud | Online upgrade of system software |
| System Tools | Timing reboot, Feature library upgrade, Collocation back-up/recovery |
| System State | User View, Traffic statistic, System log |
| Performance Paramenters | |
| Maximum number of User | 300 |
| AP Management | Maximum number of 100 Aps |
| Web User | 500 |
| PPPoE User | 400 |
| VPN User | 32 |
| QVLAN | 15 |
- Bảo hành: 24 tháng.
