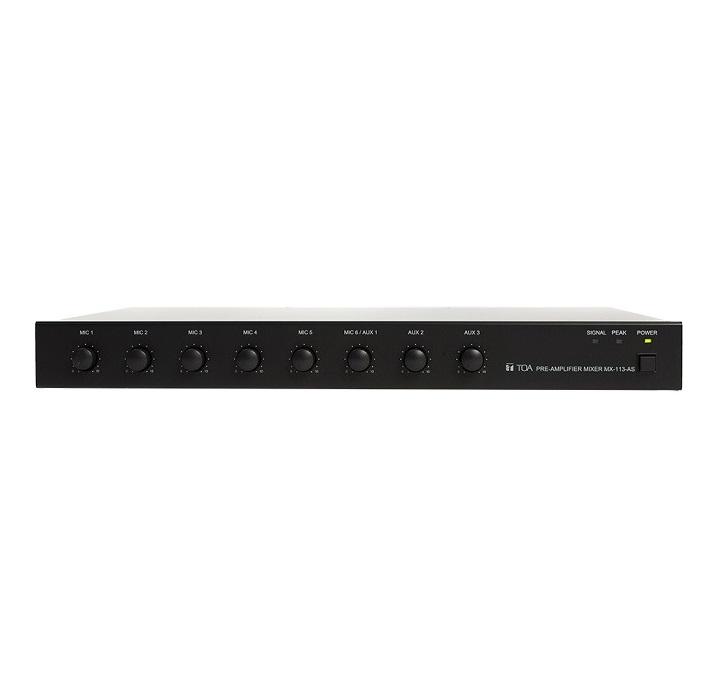

Pre-Amplifier Mixer TOA MX-113-AS
- The TOA MX-113-AS is the sound engineer to quality output. This desk mount pre-amplifier mixer is 1U size and comes with 6 microphones inputs, 4 AUX inputs and 2 monaural output to meet to all your audio needs.
Specifications
| Model | MX-113-AS |
| Power Source | 220 - 240 VAC, 50/60 Hz |
| Power Consumption | 4W |
| Input | MIC 1-5: 600Ω, -62dB, unbalanced, phone jack (voice switch OFF) 600 Ω, -54dB, unbalanced, phone jack (voice switch ON) (option IT-450 balance transformer) MIC 6: 600 Ω, -62 dB, unbalanced, phone jack AUX 1: 10 kΩ, -12 dB, unbalanced, phone jack/RCA jack (Microphone 6 and AUX 1 are switch type) AUX 2, 3: 10 kΩ, -12 dB, unbalanced, phone jack/RCA jack AUX 4: 600 Ω, -12 dB, unbalanced, phone jack (option IT-450 balance transformer) |
| Output | Line output 1: 600 Ω, 0dB, balanced, phone jack Record out : 1 kΩ, 0dB, unbalanced, RCA jack |
| Remote Terminal | Withstand voltage: DC 30V, Current: 1A, M3 Screw terminal, 6.4mm |
| T.H.D | 1% or less (1 kHz, rated output) |
| Frequency Response | 30 Hz - 20 kHz |
| Noise Level | 60 dB |
| Finish | Front Panel: Aluminium, Black, Paint |
| Dimensions | 420 (W) × 50 (H) × 271 (D) mm |
| Weight | 3.2 kg |
| Accessory | Power Cable (2 pin) |
| Option | Rack Mount Bracket: MB-15B, Balance Transformer: IT-450 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
