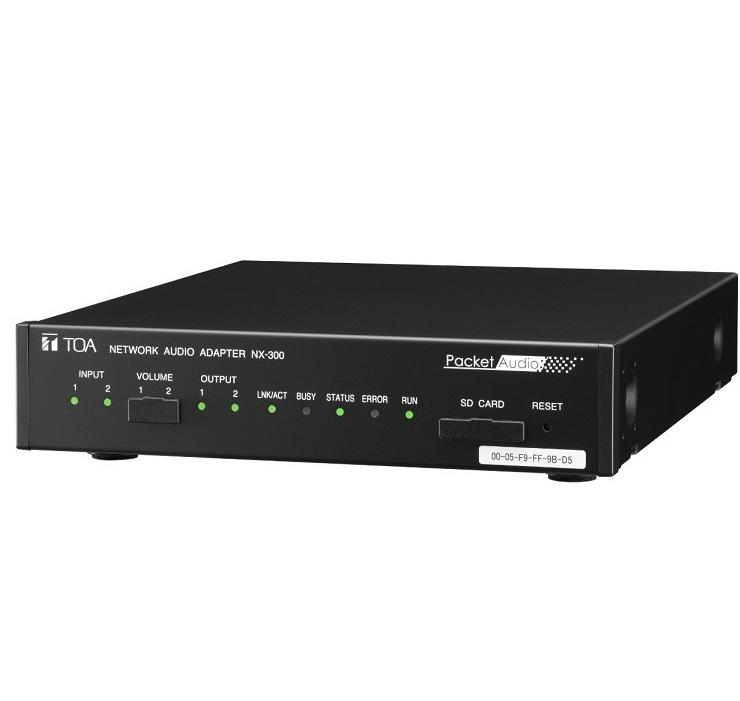

Network Audio Adapter TOA NX-300
- The TOA NX-300 is a network audio adapter that utilizes packet audio technology. Connecting the NX-300 to a network (LAN or WAN) permits high-quality audio or contact control signals to be transmitted in real time. As existing networks can be used, systems can be constructed with no need for the installation of new wiring. Broadcasts using audio files and up to 8 different levels of priority control can also be made, and provided by stations, factories or other central facilities to individual bases. It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket.TOA's unique technology which makes it possible to transmit high-quality audio signals in real time over an IP network. TOA's unique technology which makes it possible to transmit high-quality audio signals in real time over an IP network.
Specifications
| Model | NX-300 |
| Power Source | Supplied from an external 24 VDC (21.6 - 26.4 V) power supply or AC adapter AD-246 (option) or the equivalent |
| Power/Current Consumption | 10W (AC operation), 310mA (DC operation) |
| Audio Input | 2 channels, balanced (transformer isolated)/unbalanced changeable, 2 kΩ, LINE/MIC changeable, volume adjustable Rated input: -20 dB (LINE)/-60 dB (MIC) PAD function (-16 dB), removable terminal block (6 pins) |
| Audio Output | 2 channels, balanced (transformer isolated), 600 Ω or less Rated output: 0dB (unbalanced input)/-2 dB (balanced input), removable terminal block (6 pins) |
| Frequency Response | 50 Hz - 18 kHz (48 kHz sampling frequency, PCM, 0 to -6 dB deviation referred to 1 kHz) |
| Distortion | 0.2 % or less (1 kHz, LINE signal level, 48 kHz sampling frequency, PCM, BPF) |
| Signal to Noise Ratio | 73 dB or more (LINE signal level, at rated output) |
| Separation | 70 dB or more (1 kHz, LINE signal level, BPF) |
| Audio Format | WAV file |
| Number of Storable Audio Files | Max. 8 |
| Storable Time of Audio File | Max. 2 min. per audio file (16 kHz sampling frequency, sub-band-ADPCM, monaural operation) |
| Control Input | 8 channels, no-voltage make contact input, open voltage: 24VDC, short-circuit current: 2mA or less, removable terminal block (9 pins) (Only Channel 8 equipped with failure detection.) |
| Control Input Failure Detection Section | Connection resistance to make the function inactive: 20 kΩ ±5% Connection resistance to make the function active: 10 kΩ ±5 % Connector cable: Twisted pair cable (shielded type is recommended) Maximum cable distance: 10 m |
| Control Output | 8 channels, open collector output (polarized), withstand voltage: 30VDC, control current: 50 mA max., removable terminal block (9 pins) 2 channels, relay output (non-polar), withstand voltage: 30 VDC, control current: 500 mA max., removable terminal block (4 pins) |
| Network Section | Network I/F: 10BASE-T/100BASE-TX, Full-duplex/Half-duplex Auto-negotiation Network protocol: TCP, UDP, ARP, HTTP, RTP, IGMP, FTP, NTP Audio packet transmission system: Unicast (Up to 16 simultaneous transmissions), Multicast (Up to 64 simultaneous transmissions) Connector: RJ45 connector Voice sampling frequency: 8 kHz, 16 kHz, 32 kHz, 48 kHz (controllable on the software) Quantifying bit number: 16 bits Voice encoding method: PCM, Sub-band ADPCM (controllable on the software) Voice packet loss recovery: Silence insertion Audio delay time: Min. 20 ms |
| Operation | 2 channels, Audio input level control (Convertible to Audio output level control) |
| Indicator | 2 channels, audio input, SIGNAL (green)/PEAK (red), 2 channels, audio output, SIGNAL (green) LNK/ACT (green), BUSY (green), STATUS (green), ERROR (yellow), RUN (green) |
| Setting Switch | Reset, grand lift changeable, audio input 2 channels PAD changeable, audio input 2 channels LINE/MIC changeable |
| SD Section | For log storage (Max. 10000) Media: SD/SDHC card (Max. 32 GB) File system: FAT16, FAT32 ※ Use only SD memory cards rated at 100mA current consumption or less. ※ No SD card provided. |
| Installation Method | Rack, Desk, Surface mount |
| Operating Temperature | -10 ℃ to +50 ℃ |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Pre-coated steel plate, black, 30 % gloss |
| Dimensions | 210 (W) × 44.3 (H) × 258 (D) mm |
| Weight | 1.7 kg (3.75 lb) |
- Sản xuất tại Indonesia.
- Bảo hành: 12 tháng.
