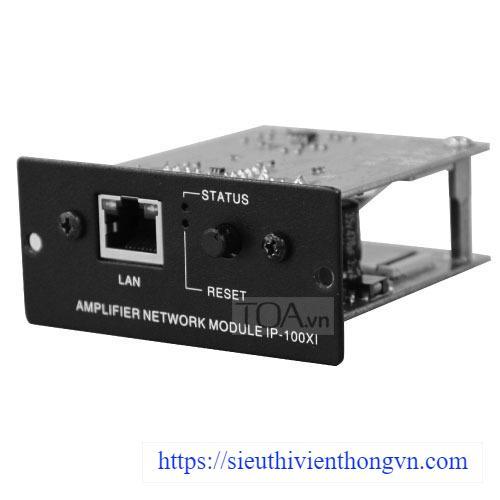

Network Module TOA IP-100XI
- Allow the amplifier to extent the network function.
Specifications
| Model | IP-100XI |
| Power Source | DC 24V |
| Current Consumption | Below 85mA |
| Frequency Response | LINE OUT (MP3/ sampling freqency: 44k): 40Hz -15kHz |
| Amplifier Audio Signal Output | Range: 1V rms, unbalanced 600Ω |
| Amplifier Muting Control Output | High impedance, max. sink current: 10mA, withstand voltage: 24VDC |
| Amplifier Protection Detection Input | low level, activated, open-circuit voltage: 3.3V |
| Amplifier Fault Detection Input | low level, activated, open-circuit voltage: 3.3V |
| Network I/F | 10 BASE-T/ 100 BASE-TX, auto negotiation |
| Network Protocol | UDP, ARP, CMP, IGMP |
| Operation Temperature | 0°C to +40°C |
| Operation Humidit | Less than 90% RH (no condensation) |
| Dimension | 78 (W) x 35 (H) x 81(D) mm |
| Weight | 0.1 kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
