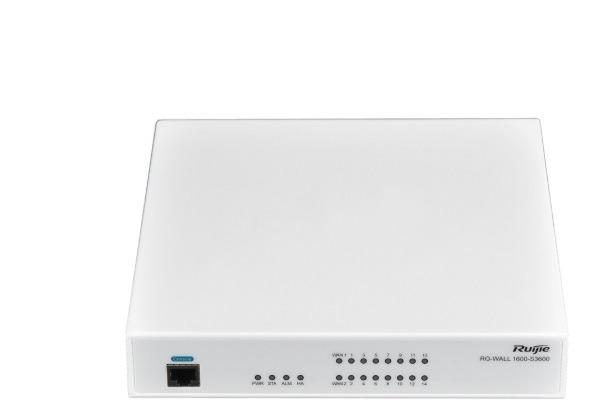

Next-Generation Firewall Ruijie RG-WALL 1600-S3600
- RG-WALL 1600-S3600 Next-Gen Firewall (16 GE ports, 1U).
- Hỗ trợ 16 cổng GE (RJ45).
- Flash 2GB and Stogate 32G.
- Memory DDR3 2GB.
- Firewall Throughput Up to 3.5Gbps.
- IPsec VPN Throughput 1Gbps.
- IPsec Tunnels 200.
- IPS Throughput 275Mbps.
- Kích thước (W x D x H): 216 x 223 x 44 mm.
- Nhiệt độ hoạt động: 0°C~40°C.
Đặc tính kỹ thuật
| Model | RG-WALL 1600-S3600 |
| Hardware Specifications | Fixed Ports: 16 GE ports (RJ45) |
| Console Port: 1 | |
| USB Port: 1 for client, 2 for server | |
| Flash & Storage: - Flash:2GB - HD:32GB | |
| Memory: DDR3 2GB | |
| Performance and Capacity | Firewall Throughput (64/ 512/ 1518 bytes): Up to 3.5Gbps |
| Firewall Latency: 4μs | |
| Maximum Concurrent Sessions: 1.5Mil | |
| New Sessions/ Sec: Up to 4K | |
| IPsec VPN Throughput: 1Gbps | |
| IPsec Tunnels: 200 | |
| IPS Throughput: 275Mbps | |
| Deployment Mode | Transparent Mode: Support |
| Routing Mode: Support | |
| Hybrid Mode: Support | |
| NAT (Network Address Translation): Support | |
| Firewall Features | MAC/IP Binding: Support |
| Routing Features | OSPF Dynamic Routing: Support |
| RIP Dynamic Routing: RIPv1/v2 support | |
| Static Routing: Support | |
| H.323 over NAT: Support | |
| Policy-Based Routing, Rule-based Routing: Support | |
| DHCP: Support DHCP Server, DHCP Client, DHCP Relay | |
| PPPoE: Support | |
| VPN Features | VPN Tunnels: Flexible on-demand configuration |
| Types of VPN Supported: GRE, L2TP, PPTP, Ipsec | |
| Encryption Standard: DES, 3DES, AES | |
| Authentication Algorithm: SHA1, MD5 | |
| Perfect Forward Secrecy (PFS): Support | |
| IPsec Protocol: Support | |
| Manual Key, IKE: Support | |
| Peer Authentication: Extensible Authentication Protocol Support | |
| IPsec NAT Traversal: Support | |
| Dynamic VPN Access: Support | |
| QoS: Support | |
| Collaboration With Other Mainstream VPN Devices: Support | |
| Content Filtering | URL Filtering: Support |
| Web Content Filtering: Support | |
| Script, Cookie Filtering: Support | |
| Web Proxy Filtering: Support | |
| Anti-Spam: Support | |
| Email Address Filtering: Support | |
| Email Attachments Shield: Support | |
| Email Size Filtering: Support | |
| Policy-Based Content Filtering: Support | |
| Anti-Virus | Virus Filtering Based on HTTP FTP SMTP POP3 IMAP Protocol: Support |
| Virus Filtering for IM File Transfers: Support | |
| VPN Traffic Virus Filtering: Support | |
| Blocking Specific File Types: Support | |
| Online Virus Database Updates: Support | |
| Intrusion Detection and Prevention | Self-Recognition Protocol: Support |
| Attack Signature Database: Support | |
| Anti Worms, Backdoor Trojans, Phishing and Other Attacks: Support | |
| Multiple Policy Sets: Support | |
| Signature Database Upgrade: Support | |
| Customized Signature Database: Support | |
| IPv6 | IPv6 Ready Certificate: Support |
| IPv4/IPv6 Dual Stack: Support | |
| Policy/ Content Filtering/ IPS Inspection/ Traffic Control/ VPN: Support | |
| Static Route/ RIPng/ OSPFv3: Support | |
| IP-based Traffic Control: Support | |
| DHCPv6 Server and Relay: Support | |
| Internet Behavior Management | IM Software Login and File Transfer Control: Support |
| Speed Control of P2P Software: Support | |
| Streaming Media Software Speed Control: Support | |
| Online Game Control: Support | |
| Stock Software Control: Support | |
| System Management | Local Administrator Database: Support |
| Restrictive Management Network: Support | |
| Administrators Classification: Support | |
| Software and Signature Updates: Support | |
| Time Synchronization: Support | |
| Configuration Changes: Support web, command line | |
| Certificate Authentication: Support | |
| Management Methods: Support web, command line | |
| Standard MIB or Private MIB: Support | |
| SNMP: Support SNMPv1/v2/v3 | |
| Centralized Management: Support | |
| Local Management: Support | |
| Remote Management: Support | |
| Shell Session: Support | |
| Virus Database Updates: Support | |
| Logs Monitoring | Internal Log Database: Support |
| External Log Server: Support | |
| Remote System Log Server: Support | |
| Real-Time Statistics: Support | |
| Log Level: Support | |
| Log Backup: Support | |
| System Status Display: Support | |
| Alarm Mode: Support | |
| High Availability | HA Mode: Support routing mode and transparent mode HA |
| Configuration File/ Change Synchronization: Support configuration and status synchronization | |
| Signature Database Synchronization: Support | |
| HA Device Authentication: Support | |
| HA Data Encryption: Support | |
| Dimensions (W x D x H) | 216 x 223 x 44 mm |
| Weight | 1.6kg |
| Power Consumption | 22W |
| Temperature | Operating Temperature: 0°C to 40°C Storage Temperature: -25°C to 70°C |
| Humidity | Storage Humidity: 20% to 95% |
- Bảo hành: 3 năm.
