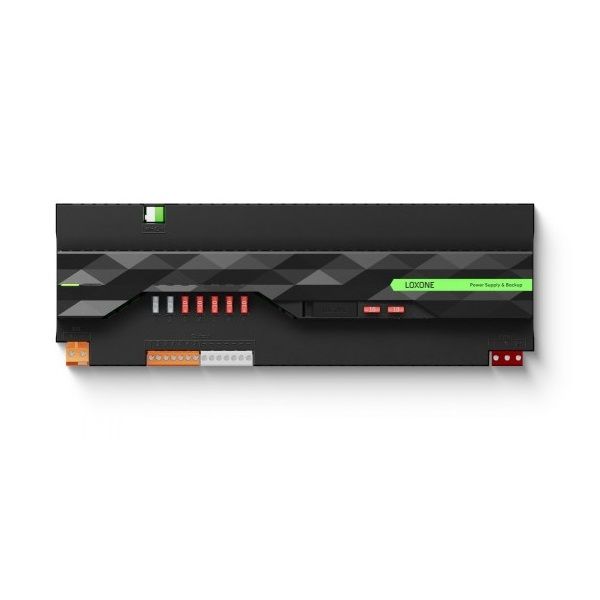

Nguồn dự phòng cho hệ thống LOXONE (100401)
- Nguồn dự phòng cho hệ thống hỗ trợ dòng điện lên đến 40A.
- Nguồn cấp: 220 ~ 240VAC, 50 ~ 60Hz.
- Hỗ trợ 7 output tối đa 10A mỗi output.
- Điện áp đầu ra: 24 ~ 27VDC.
- Pin đầu vào 36VDC (tối đa dây kết nối 2m).
- Kết nối Loxone Tree vs miniserver/ Tree Ext.
- Nhiệt độ hoạt động: -25 ~ 70°C.
- Chuẩn bảo vệ: IP20.
- Kích thước: 324 x 110 x 72.37 mm.
- Chứng nhận: EN 61000-6-1, EN 61000-6-3, UL 62368-1, CSA C22.2 No. 62368-1:19, CE.
Thông số kỹ thuật
| AC Input (mains voltage) | |
| Nominal voltage | 220 ~ 240VAC, 50/60Hz |
| Input current nominal / peak | 4.6A / 6.9A |
| Inrush current | 15A |
| Efficiency | typ. 94% |
| Power consumption no load | 4W |
| Power loss | no load: 4W, 1000W: 62W |
| Power factor | 0.96 |
| DC Outputs | |
| Output voltage | 24 ~ 27VDC (adjustable in Loxone Config) |
| Total current nominal load (continuous) | Mains powered: 40A Battery powered: 25A |
| Total current peak load (10sec) | Mains powered: 60A Battery powered: 40A |
| Layout of outputs | 7 outputs with up to 10A each individually protected by user replaceable fuses Notification of defective fuses by LEDs and software Power measurement for each output mains isolated, SELV and PELV capable GND terminals internally connected Thermally and overload protected by shutdown of total load |
| Fuse type | Blade type Mini Automotive Fuse 32V, APM/ATM Littelfuse® 297 max. 15A |
| Battery Input | |
| Nominal Voltage | 36VDC |
| Discharge current peak load | 25A |
| Discharge current nominal load | 17A |
| Max. charging current | 2A |
| Battery type | Lead-acid, VRLA recommended |
| Battery capacity | max. 200Ah for a single Battery of a 36V pack |
| Max. length of battery cables | 2m |
| Battery fuse | The battery cable must be suitably fused close to the battery |
| Interface | |
| Loxone Tree | connection with Miniserver / Tree Extension |
| Product Characteristics | |
| Mounting type | DIN rail according to EN50022, 35mm |
| Color | Black |
| Finish | Matte |
| Weight | 1532g |
| Dimensions | 324x110x72.37mm |
- Bảo hành: 24 tháng.
