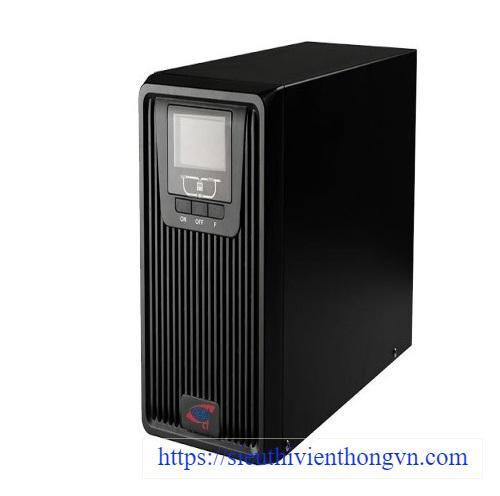

Nguồn lưu điện 10KVA UPS EPI MTN-Plus-1100-00S
- Bộ lưu điện UPS 10KVA/9KW EPI UPS Double Convertion True-Online, UPS sử dụng đèn chỉ dẫn dạng LCD.
Features:
- Faster response, more reliable protection by adoptingcurrent-limiting hardware circuit on rectifier and inverter sections.
- 3-level inverter, support any kinds of load in the power range: Air conditioner/ Laser printer/ fans/ 6-pulse load.
- Greatly reduces the voltage stress of input PFC switching components, increases the overall working efficiency by adopting PFC soft switching circuit technology.
- Electric stress on switching the UPS on/off is reduced by 50%, inverter working efficiency increases significantly, supports all kinds of load by adopting 3-level inverter technology.
- Overall efficiency is increased greatly, less power consumption of small load, effective efficiency reaches over 93% on full load.
- With mobile network monitoring function developed, end user can monitor and supervise UPS functioning and running with mobile device any time, anywhere.
- Stable output voltage wave form, more accurate output range of 220V, ±1%.
Đặc tính kỹ thuật
| Module Model | MTN-Plus-1100-00S |
| Công suất | 10 KVA/ 9 KW |
| Công nghệ | Double conversion online type |
| Đầu vào | |
| Phase | Single Phase + Ground |
| Điện áp | 220/230/240V |
| Dải Điện áp | (120±5～274±5）VAC |
| Current (A) | 27 (max) |
| Frequency | 50/60Hz±10% |
| Power Factor | ≥0.99 @ full load |
| Đầu ra | |
| Phase | Single Phase + Ground |
| Điện áp | 200/208/220/230/240 VAC |
| Bước sóng | True Sine Wave |
| Frequency | 50/60Hz (selectable) |
| Power Factor | 0.9 |
| Crest Factor | 3:01 |
| THD | <2%(Linear Load) |
| Ắc quy | |
| Type | Maintenance-free lead-acid |
| Lưu điện | 30 phút |
| Voltage (DC) | 240VDC |
| Communication | |
| Communication Interface | 9 pin D type connector (RS232), intelligent slot for SNMP adaptor (optional) |
| Enviromental | |
| Operating Temperature | 0°C ~ 40°C |
| Humidity | 20 ~ 95% (non-condensing) |
| Storage Temperature | -25°C ~ 45°C |
| Noise (1 meter) | ≤ 55dB |
| Mechanical | |
| Dimension (WxDxH)(mm) | 533x260x560 |
| Weight (kg) | 62 kg |
| Standards | |
| Industry Standards | IEC 61000-4-2 to 5, GB4943-2001, IEC 62040-1, YT/D 1095-2000 |
- Bảo hành: 24 tháng UPS và 12 tháng Acquy.
