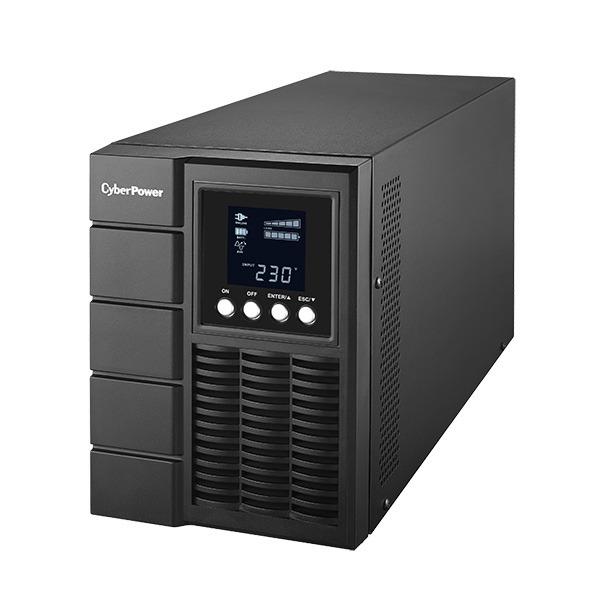

Nguồn lưu điện UPS CyberPower OLS1500EXL
– Công suất bộ lưu điện: 1500VA/ 1350W
– Công nghệ: Online (Double Conversion)
– Hệ số công suất: 0.8
– Điện áp vào: 190-280VAC
– Tần số ngõ vào: 40-70 Hz
– Điện áp ngõ ra: 208, 220, 230, 240VAC (Configurable)
– Tần số ngõ ra: 50Hz/ 60Hz ± 0.5%
– Dạng sóng ngõ ra: Sóng sin chuẩn
– Thay thế pin nóng
– Màn hình hiện thị LCD và LED
– Bảo vệ chống sét lan truyền: RJ11/RJ45 (One In/ One Out)
– EPO (Emergency Power Off): Ngắt nguồn ngõ ra khẩn cấp
– Cổng kết nối: RS232, USB
– UPS không có acquy bên trong
– Dòng sạc cho acquy tối đa 8A
– Có thể mở rộng 10 cabinet battery
– Mở rộng cabinet battery nâng thời gian runtime của UPS
– SNMP/ HTTP Remote Management Capability (Optional)
– Phần mềm: PowerPanel®Business Edition
– Kiểu dáng: Tower
Đặc tính kỹ thuật
Model | OLS1500EXL |
Capacity (VA/W) | 1500VA / 1350W |
Typology | Online (Double Conversion) |
Energy-Saving Technology | Yes, ECO Mode Efficiency > 95% |
Input | |
Voltage Range | 120~139Vac for 0~25% Load |
140~159Vac for 0~50% Load | |
160~179Vac for 0~75% Load | |
180~280Vac for 0~100% Load | |
Input Type | IEC C14 |
Frequency Range | 40~70Hz |
Output | |
UPS Outlets (Numbers) | (4) IEC C13 |
On Battery Output Voltage | Pure Sine Wave at 208, 220, 230, 240 VAC (Configurable) |
On Battery Output Voltage Distortion (@Nominal Battery Voltage) | ≤ 3% (Linear Load), ≤ 5% (Non-Linear Load) |
On Battery Output Frequency | 50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5% |
Transfer Time (Typical) | 0ms |
Overload Protection | AC Mode: Warning only @ 110%>Load>105%, Transfer to bypass after 60sec @ 120%>Load>110%, Transfer to bypass immediately@ Load>120% Battery Mode: Warning only @ 110%>Load>105%, Shutdown after 10sec @ 120%>Load>110% Shutdown immediately @ Load>120% Bypass Mode: Warning only @ 130%>Load>105%, Shutdown immediately @ Load>130% |
Surge Protection and Filtering | |
Surge Protection | Yes |
DSL/Phone/Fax/Modem protection | RJ11/ RJ45 (One In/ One Out) |
Short Circuit Protection | UPS Output Cut off Immediately or Circuit Breaker Protection |
Battery | |
Sealed Maintenance Free Lead Acid Battery | Depends on external batteries |
Configurable External Battery Pack (Max.) | 10 |
Typical Recharge Time | Depends on external batteries. Built-in Charger (8A Max.) |
Runtimes | |
Half load-Full load (mins) | Depends on external batteries |
Status Indication | |
Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode, C/F Mode, Fault, Replace Battery |
Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
Communication | |
Power Management Software | PowerPanel® Business Edition |
Management | |
Self-Test | Yes |
Auto-Charge/Auto-Restart | Yes |
Auto-Overload Recovery | Yes |
Cold Start (DC Start) | Yes |
Connectivity Ports | (1) Serial Port (RS232), (1) USB Port, (1) EPO/ROO |
SNMP/ HTTP Capable | Optional |
Dimensions | 225 x 151 x 394 mm |
Weight | 7.8 kg |
– Bảo hành: 2 năm
