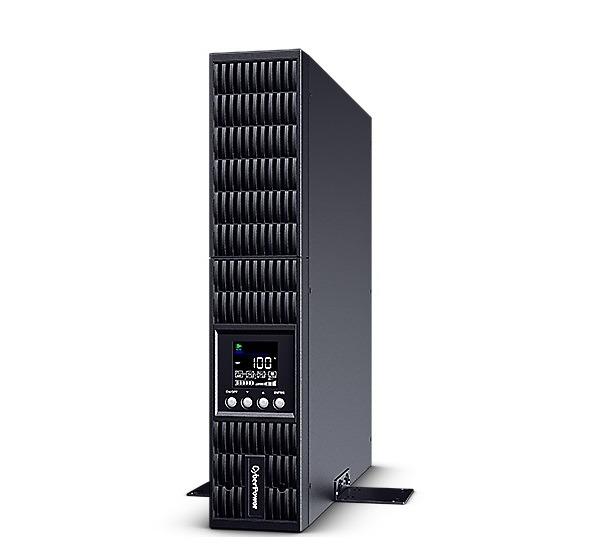

Nguồn lưu điện UPS CyberPower OLS2000ERT2UA
- Công nghệ: On-line double conversion.
- Công suất: 2000VA/1800W.
- Điện áp vào: 160-300 VAC (dòng 2KVA/3KVA là 190~300VAC).
- Power Factor: 0.9.
- Tần số nguồn vào: 40-70 Hz.
- Điện áp ra: 200, 208, 220, 230, 240VAC (Configurable) ±1%.
- Tần số nguồn ra: 50 Hz ± 0.5%.
- Hot swaps battery.
- Tự động nhận tủ acquy ngoài mở rộng.
- Màn hình hiển thị LCD màu và Led (xoay được 90 độ).
- Bảo vệ chống sét lan truyền: RJ11/RJ45 (One In/One Out).
- EPO (Emergency power off): ngắt out khẩn cấp.
- Cổng tiếp điểm khô (Dry contact).
- Quạt làm mát có 20 chế độ (tự động).
- Cổng kết nối: RS232, USB.
- SNMP/HTTP Remote Management Capability (Optional).
- Phần mềm: PowerPanel®Business Edition.
- Kiểu dáng: Rack 2U Or Tower.
Đặc tính kỹ thuật
| Model | OLS2000ERT2UA |
| General | |
| Phase | Single Phase |
| Form Factor | Rack, Tower |
| UPS Topology | On-line double conversion |
| Energy Saving Technology | ECO Online mode efficiency> 95% |
| Active PFC Compatibility | Yes |
| Input | |
| Compatible with Generators | Yes |
| Nominal Input Voltage | 230VAC ± 10% |
| Input Voltage Range | 190 ~ 300 VAC |
| Adjustable Voltage Range | 0 ~ 30% load 80 ~ 300 Vac 0 ~ 50% load 120 ~ 300 Vac 0 ~ 75% load 160 ~ 300 Vac 0 ~ 90% load 190 ~ 300 Vac 0 ~ 100% load 200 ~ 300 Vac |
| Input Frequency | 50Hz ± 10 60Hz ± 10 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current | 9A |
| Input Power Factor | 0.99 |
| Input Connector Type | IEC C14 |
| Detachable Power Cord Plug Type | Schuko x 1 |
| Power Cord Length | 5ft |
| Power Cord Length | 1.5m |
| Output | |
| Capacity | 2000VA |
| Capacity | 1800W |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage | 208 ± 1% 220 ± 1% 230 ± 1% 240 ± 1% |
| Output Voltage Setting | Configuration |
| On Battery Frequency | 50Hz ± 0.5% 60Hz ± 0.5% |
| Output Frequency Setting | Configuration |
| Power Factor | 0.9 |
| ECO voltage mode | ± 15% |
| Overload Protection | Internal Current Limiter, Circuit Breaker, Fuse |
| Overload Protection (Line Mode) | 110 ~ 120% Load for 1 min, >120% Load Immediately |
| Overload Protection (Battery Mode) | 110 ~ 120% Load for 10 sec,> 120% Load Immediately |
| Overload Protection (Bypass Mode) | > 130% Download immediately |
| Peak Factor | thirty first |
| Harmonic distortion (Linear load) | THD <3% |
| Harmonic distortion (Non-linear load) | THD <5% |
| Bypass In | Auto Bypass, Manual Bypass |
| Socket (s) – Total | 8 |
| Socket Type | IEC C13 x 8 |
| Electrical Sockets - Battery & Overload Protection | 8 |
| Socket (s) - Load (CL) | 4 |
| Socket (s) - Unlimited Load (NCL) | 4 |
| Normal Switching Time | 0 |
| Battery | |
| Runtime at Half Load | 11.9 min |
| Runtime at Full Load | 4 min |
| Typical Recharge Time | 4 hours |
| Maximum Charge Current | 1.5A |
| Start On Battery | Yes |
| Smart Battery Management (SBM) | Yes |
| User-replaceable | Yes |
| Battery Type | Sealed Lead-acid |
| Battery Replacement Set | RBP0157 |
| RBP Quantity | 1 |
| Number of Batteries | 4 |
| Battery Voltage | 48V |
| Battery Capacity | 12V 9AH |
| Surge protection & Filtering | |
| Surge Suppression | 363J |
| EMI/RFI Filtration | Yes |
| Phone/Network Protection RJ11/RJ45 (Combo) | 1-in, 1-out |
| Management & Communications | |
| LCD Control Panel | Yes |
| Color LCD | Yes |
| LCD Orientation | Rotable LCD screen - Manual |
| LCD Information Display | Operational Mode, Energy Status, Battery Condition, Load Status, Error & Warning, OTHER INFORMATION, Events & Logging |
| LCD Setting & Control | Setup Mode, Alarm Setting, Input & Output, Battery Setting |
| HID Compliant USB Port(s) | 1 |
| Dry Switch | Yes |
| Emergency Power Off (EPO) Port | Yes |
| Audible Alarms | Battery Mode, Low Battery, Overcharge, Overcharge, Overheating, UPS Failure, Battery Replacement |
| Management Cable | Power Cord x2, USB Cable x1 |
| Power Management Software | PowerPanel® Business (Recommended) |
| SNMP/HTTP Remote Monitoring | Yes - with RMCARD205 option |
| Physical | |
| Enclosure Construction | Metal |
| Color | Black |
| Others | |
| Dimensions (WxHxD) | 438 x 88 x 430 mm |
| Weight | 17.15kg |
| Installed Rack Height | 2U |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -15 ~ 45°C |
| Operating Relative Humidity (Non-condensing) | 0 ~ 95% |
| Online Thermal Dissipation | 682 BTU/hr |
| Audible Noise at 1.0M from Surface of Unit | 45 dBA |
- Bảo hành: 24 tháng.
