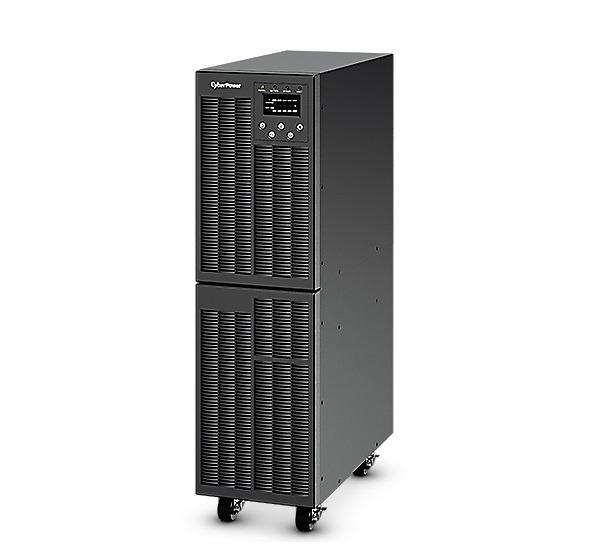

Nguồn lưu điện UPS CyberPower OLS6000EC
- Công nghệ: On-line double conversion.
- Công suất: 6000VA/4800W.
- Điện áp ngõ vào: 110-276VAC.
- Tần số nguồn vào: 45-65 Hz.
- Điện áp ra: 200, 208, 220, 230, 240 VAC ± 1%.
- Power Factor: 0.8.
- Tần số nguồn ra: 50Hz ± 0.1%.
- Màn hình hiển thị đèn Led.
- Smart Battery Management (SBM).
- EPO (Emergency power off): ngắt out khẩn cấp.
- Cổng kết nối: RS232, USB.
- SNMP/HTTP Remote Management Capability (Optional).
- Phần mềm: PowerPanel®Business Edition.
- Kiểu dáng: Tower (có bánh xe).
- Có cầu chì bảo vệ đầu ra cho UPS.
Đặc tính kỹ thuật
| Model | OLS6000EC |
| General | |
| UPS Topology | Online Double Conversion |
| Energy Saving Technology | Online ECO Mode Effciency > 96% |
| Active PFC Compatibility | Yes |
| Input | |
| Compatible with Generators | Yes |
| Nominal Input Voltage | 230 VAC |
| Input Voltage Range | 110 ~ 276 VAC |
| Input Frequency | 60Hz ± 6, 50Hz ± 5 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current | 27.3A |
| Input Power Factor | 0.99 |
| Input Connector Type | Hardwire Terminal Block |
| Output | |
| Capacity | 6000VA |
| Capacity | 4800W |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage | 208 ± 1%, 220 ± 1%, 230 ± 1%, 240 ± 1% |
| Output Voltage Setting | Configurable |
| On Battery Frequency | 60Hz ± 0.1%, 50Hz ± 0.1% |
| Output Frequency Setting | Configurable |
| Power Factor | 0.8 |
| Overload Protection | Internal Current Limiting, Circuit Breaker, Fuse |
| Overload Protection (Line Mode) | 105~125% Load for 1 min, 125~135% Load for 30 sec, 135~150% Load for 1 sec, >150% Load Immediately |
| Overload Protection (Battery Mode) | 105~125% Load for 1 min, 125~135% Load for 30 sec, >135% Load Immediately |
| Overload Protection (Bypass Mode) | 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec |
| Harmonic distortion (Linear load) | THD <2% |
| Harmonic distortion (Non-linear load) | THD <5% |
| Outlet(s) - Total | 1 |
| Outlet Type | Hardwire Terminal Block x 1 |
| Typical Transfer Time | 0ms |
| Battery | |
| Runtime at Half Load | 10 min |
| Runtime at Full Load | 4 min |
| Typical Recharge Time | 7 hours |
| Smart Battery Management (SBM) | Yes |
| User-replaceable | No |
| Battery Type | Sealed Lead-acid |
| Surge protection & Filtering | |
| Surge Suppression | 445J |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| LED Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault |
| HID Compliant USB Port(s) | 1 |
| Serial Port | RS232 |
| Dry Contact (with Relay) | Optional |
| Emergency Power O (EPO) Port | Yes |
| Power Management Software | PowerPanel® Business Edition |
| SNMP/HTTP Remote Monitoring | Yes - with optional RMCARD205 |
| Physical | |
| Form Factor | Tower |
| Others | |
| Dimensions (WxHxD) | 196 x 702 x 412 mm |
| Weight | 54kg |
| Operating Temperature | 0 ~ 40°C |
| Operating Relative Humidity (Non-condensing) | 0 ~ 90% |
| Online Thermal Dissipation | 1425 BTU/hr |
- Bảo hành: 12 tháng.
