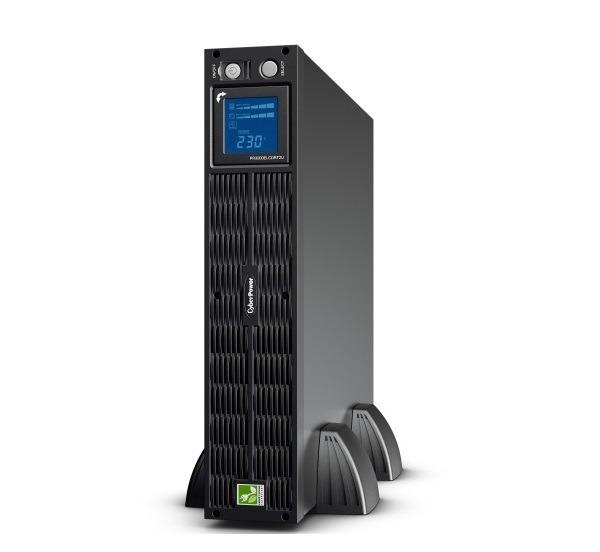

Nguồn lưu điện UPS CyberPower PR3000ELCDRT2U
- Công suất: 3000VA/ 2700W.
- Sử dụng công nghệ GreenPower UPS™ Technology.
- Dạng sóng ngõ ra: Pure Sine Wave.
- Hệ số công suất: 1.0.
- Sử dụng công nghệ Line-Interactive.
- UPS thiết kế dạng Rack/Tower.
- Chức năng Automatic Voltage Regulator (AVR).
- Cầu chì bảo vệ đầu ra UPS.
- Tự động sạc battery.
- Hot swaps battery.
- Hỗ trợ cổng Emergency Power Off (EPO).
- Màn hình hiển thị LCD (có thể xoay được): Multi-functional Matrix LCD.
- Kết nối với máy tính qua cổng USB & Serial.
- Có cổng tiếp điểm khô (Dry contact).
- Bảo vệ chống sét lan truyền: Phone/Fax/Modem and DSL/Network protection.
- Phần mềm: PowerPanel®Business Edition.
- SNMP/ HTTP Remote Management Capabilities (optional).
- Cổng kết nối qua RS232 và USB.
Đặc tính kỹ thuật
| Model | PR3000ELCDRT2U |
| General | |
| Phase | Single Phase |
| Form Factor | Rackmount, Tower |
| UPS Topology | Line-interactive |
| Energy Saving Technology | GreenPower UPS™ Bypass Technology |
| Active PFC Compatibility | Yes |
| Input | |
| Nominal Input Voltage (VAC) | 220, 230, 240 VAC |
| Input Voltage Range | 150 ~ 300 VAC |
| Input Frequency | 50Hz ± 3 60Hz ± 3 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current | 16A |
| Input Connector Type | IEC C20 |
| Detachable Power Cord Plug Type | AU x 1 |
| Power Cord Length | 10ft |
| Power Cord Length | 3.05m |
| Output | |
| Capacity | 3000VA |
| Capacity | 2700W |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage | 220VAC ± 5% 230VAC ± 5% 240VAC ± 5% |
| On Battery Frequency | 50Hz ± 0.1% 60Hz ± 0.1% |
| Power Factor | 0.9 |
| Automatic Voltage Regulation (AVR) | Double Boost, Single Buck |
| Overload Protection | Internal Current Limiting, Circuit Breaker |
| Outlet(s) – Total | 10 |
| Outlet Type | IEC C19 x 1 IEC C13 x 9 |
| Outlet(s) - Battery & Surge Protected | 10 |
| Outlet(s) - Critical Load (CL) | 4 |
| Outlet(s) - Non-Critical Load (NCL) | 6 |
| Typical Transfer Time | 4ms |
| Battery | |
| Runtime at Half Load | 7 min |
| Runtime at Full Load | 2.3 min |
| Typical Recharge Time | 6 hours |
| Start On Battery | Yes |
| User-replaceable | Yes |
| Hot-swappable | Yes |
| Battery Type | Sealed Lead-acid |
| Battery Cartridge | RBP0040 |
| RBP Quantity | 1 |
| Compatible Extended Battery Module (EBM) | BPE48V75ART2U (Built-in Charger) |
| Max. EBM Quantity | 0~75% Load: 0~5 EBMs, 75~100% Load: 0~2 EBMs |
| Surge protection & Filtering | |
| Surge Suppression | 810J |
| EMI/RFI Filtration | Yes |
| Phone/Network Protection RJ11/RJ45 (Combo) | 1-in, 1-out |
| Management & Communications | |
| LCD Panel | Yes |
| LCD Information Display | Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information |
| LCD Setting & Control | Alarm Setting, Input & Output, Battery Setting |
| LED Indicators | Power On |
| HID Compliant USB Port(s) | 1 |
| Emergency Power Off (EPO) Port | Yes |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
| Management Cable | Power Cord x5, USB Cable x1, Serial Cable x2, EPO Cable x1, Phone Line x1 |
| Power Management Software | PowerPanel® Business (Recommended) |
| SNMP/HTTP Remote Monitoring | Yes - with optional RMCARD205 |
| Physical | |
| Enclosure Construction | Metal |
| Color | Black |
| Others | |
| Dimensions (WxHxD) | 433 x 88 x 480 mm |
| Weight | 37kg |
| Installed Rack Height | 2U |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -15 ~ 45°C |
| Operating Relative Humidity (Non-condensing) | 0 ~ 95% |
| Online Thermal Dissipation | 194.5 BTU/hr |
| Audible Noise at 1.0M from Surface of Unit | 34.6 dBA |
- Bảo hành: 24 tháng.
