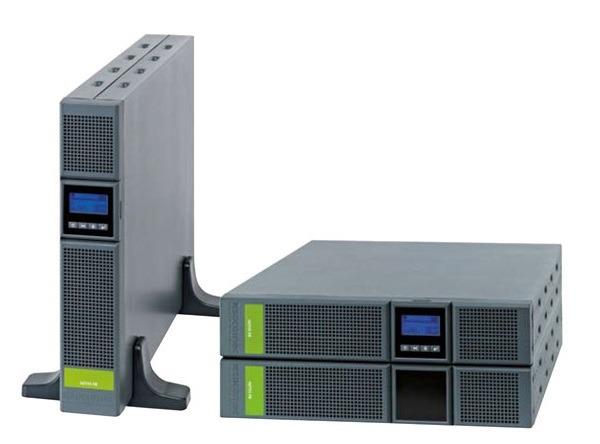

Bộ nguồn lưu điện 1700VA UPS SOCOMEC NPR-1700-RT
- Công suất: 1700VA/1350 Watt.
- Công nghệ: Line-interactive with AVR.
- Thời gian chuyển mạch: 4ms.
- Hệ số công suất (Power factor): >0.9@2000VA.
- Độ méo hài (THDi): <5%.
- Hiệu suất (Efficiency): up to 93% online mode.
- Output: 8xIEC 320-C13 (10A).
- Khả năng chịu quá tải (Overload capability): lên 105% liên tục (continuously); 110% x 3 phút(min); quá tải ngắt mạch bảo vệ thiết bị.
- Certifications: RoHS.
Technical data
| Sn | 1700 VA |
| Pn | 1350 W |
| Input /output | 1/1 |
| Input | |
| Rated voltage | 230 V |
| Voltage tolerances | 161 V ±4% (selecting wide mode) -276 V ±4% |
| Rated frequency | 50/60 Hz with automatic selection |
| Mains connection | IEC320-C14 (10 A) |
| Output | |
| Automatic Voltage Regulation (AVR) | The AVR increases (boost 1) the output voltage by 14% when the input voltage drops below 90% of the nominal value. The AVR decreases (bucks) the output voltage by 12% when the input voltage rises above 106% of the nominal value. |
| Rated voltage | 230 V ±5% |
| Rated frequency | 50/60 Hz ±0.1% |
| Power factor | 0.9 @ 1500 VA |
| Wave form | Sine wave |
| Protection | Normal Mode: overload (110% for 3 minutes) Battery Mode: overload (110% for 30 seconds); shortcircuit protected |
| Sockets | 8 (10 A) x IEC 320 |
| Batteries | |
| Type | Sealed lead-acid maintenance free - expected life 3/5 years |
| Back-up time | 6 min |
| Communication | |
| Interface | RS232 - USB |
| Ethernet adapter | NET VISION (TCP/IP & SNMP) optional card |
| Local communication software | Local View |
| Data line protection | NTP data line suppressor: RJ45 10 Base T |
| UPS Cabinet | |
| Dimensions W x D x H | 440 x 436 x 87 mm |
| Weight | 18 kg |
| Standards | |
| Safety | IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
| EMC | IEC/EN 62040-2, AS 62040.2 |
| Product declaration | CE, RCM (E2376) |
- Thương hiệu SOCOMEC của Pháp.
- Bảo hành 24 tháng, 1 đổi 1 trong thời gian bảo hành.
