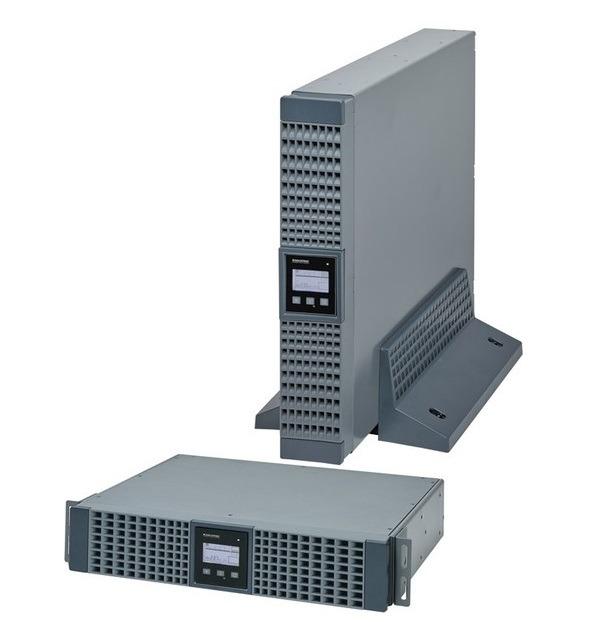

Bộ nguồn lưu điện 9000VA UPS ONLINE RACKMOUNT SOCOMEC NRT2-U9000C
- Công suất: 9000 VA/7200 Watt.
- Công nghệ: Online.
- Thời gian chuyển mạch: 0ms.
- Hệ số công suất (Power factor): >0.99.
- Độ méo hài (THDi): <5%.
- Hiệu suất (Efficiency): up to 92% online mode.
- Chạy dự phòng song song (Parallel redundant function): 1+1.
- Khả năng chịu quá tải (Overload capability): lên 105% liên tục (continuously); 125% x 5 phút (min); 150% x 30 giây (sec).
- Bộ sạc 4A, Vôn 240 VDC thời gian sạc
Technical data
Sn | 9000 VA |
Pn | 7200 W |
Architecture | 1+1 |
Input | |
Voltage | 230 V (1ph) 181÷280 V; up to 100 V @50% load |
Frequency | 50/60 Hz +/-10% (Auto-Selectable) |
Power factor / THDi | >0.99 / <5% |
Input socket | terminals |
Output | |
Voltage | 230 V (1ph) selectable 200/20 /220/240 V - 50 or 60 Hz ± 2% (± 0.05 Hz in battery mode) |
Power factor | 0.9 @8000VA |
Efficiency | up to 93% online mode |
Overload capability | up to 105% continuously; 125% x 5 min; 150% x 30 sec |
Output connections | terminals |
Battery | |
Standard autonomy | 8 |
Voltage | 240 VDC |
Recharge time | < 6 hr to recover 90% capacity |
Communication | |
Mimic panel | LCD with menu available in 6 languages |
RS232 MODBUS protocol | Yes |
WEB/SNMP (Ethernet RJ45 port) | Yes |
COMM slot | Yes |
Dry contacts card | option |
EPO input (RJ11 port) | Yes |
Parallel port | Yes |
Standards | |
Safety | IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
EMC | IEC/EN 62040-2, AS 62040.2 |
Performance | IEC/EN 62040-3 (efficiency tested by an external independent body) |
Product declaration | CE, RCM (E2376) |
Environment | |
Operating ambient temperature | from 0 °C to +40 °C (from 15 °C to 25 °C for best battery life) |
Storage temperature range | from -15 °C to +50 °C (from 15 °C to 25 °C for best battery life) |
Relative Humidity | 5-95% non-condensing |
Noise level (ISO 3746) | |
UPS Cabinet | |
UPS size std (W x D x H) | 261x623x440 mm |
UPS size RACK | 3U+3U |
UPS weight std | 19.5+66 kg |
IP rating | IP20 |
EBM module size (W x D x H) | 130.5x623x440 mm |
EBM module RACK | 3U |
EBM module weight | 66 kg |
- Thương hiệu SOCOMEC của Pháp.
- Bảo hành 24 tháng, 1 đổi 1 trong thời gian bảo hành.
