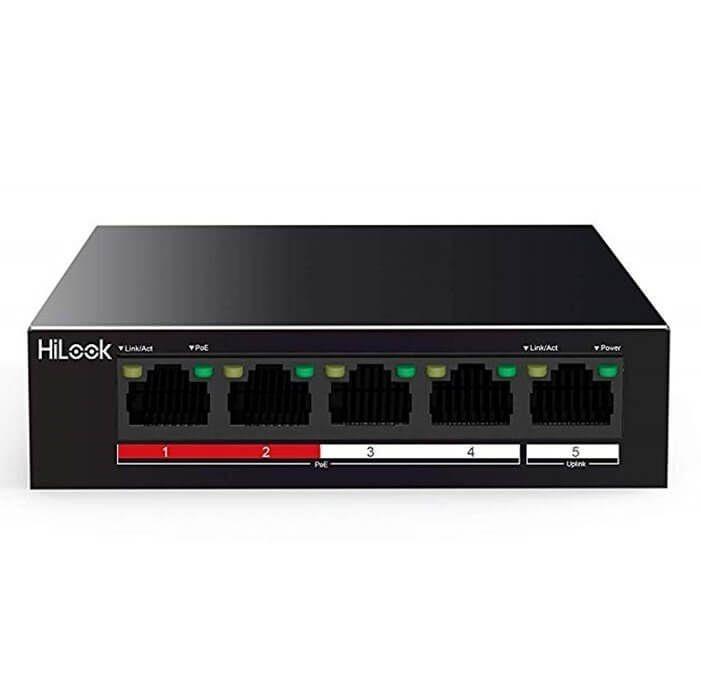

4-Port 100M PoE Switch HILOOK NS-0105P-35
- L2, Unmanaged, 4-Port PoE 100M, 1-port uplink 100M, 802.3af/at.
- Ports 1 to 4 support IEEE 802.3af standard.
- When the switch is in EXTEND mode and the data rate is 10Mbps, ports 1 to 4 support long-distance data transmission up to 250 meters.
- All ports support 6kV lightning protection.
- This switch supports Auto MDI/MDIX.
- This switch supports store-and-forward.
- This switch supports MAC address auto learning and auto aging.
- This switch supports smart cache optimization.
- This switch supports desktop / wall mounting.
Specifications
| Model | NS-0105P-35 |
| Port | |
| Port amount | 5 |
| Port type | RJ45, 10/100 Base-T(X) |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding method | Store-and-forward |
| Flow control | Back-pressure flow control in IEEE 802.3x full duplex |
| Priority queue | 2 |
| MAC address table | 1K |
| QoS | Supported on ports 1 and 2 |
| Switching capacity | 1 Gbps |
| Packet forwarding rate | 0.744 Mpps |
| Physical appearance/structure | |
| Appearance | 0.6 mm sheet of galvanized metal without electric fan |
| Weight | 0.141 kg |
| Dimension | 100 mm × 100 mm × 26 mm |
| Mounting type | Desktop / wall mounting |
| Environment | |
| Operating temperature | (0 - 40) °C |
| Storage temperature | (-40 - 70) °C |
| Operating humidity | (10 – 90) % RH, non-condensing |
| Storage humidity | (5 – 90) % RH, non-condensing |
| Power supply | |
| Power input | 48 V DC, 0.8 A |
| Reverse connection protection | Supported |
| PoE output power | 35 W |
| Power consumption | < 38 W |
| Other parameters | |
| LED indicator | Link/Act LED indicators, PoE LED indicator, Power LED indicator |
- Bảo hành: 24 tháng.
