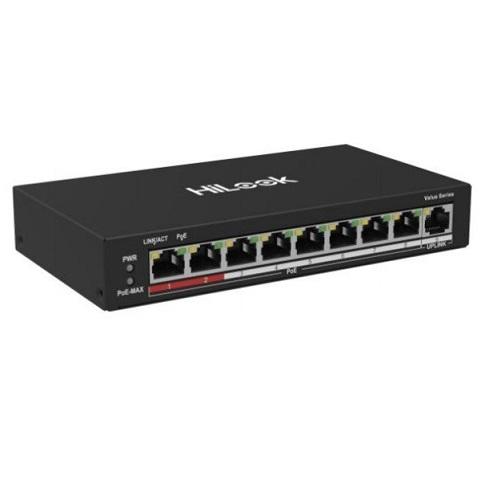

8-Port 100 Mbps Long-Range Unmanaged PoE HILOOK NS-0109P-60 (B)
- 8 × 100 Mbps PoE ports, and 1 × 100 Mbps Ethernet port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.
- High priority ports.
- 8-core power supply.
- Up to 250 m transmission distance.
- 6 KV surge protection PoE ports.
- PoE power management.
- 100 Mbps network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Specifications
| Model | PTZ-T4215-D3 |
| Network parameters | |
| Port number | 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| High priority ports | Ports 1 to 2 |
| Ports for long-distance transmission | Ports 1 to 8 |
| MAC address table | 2 K |
| Switching capacity | 1.8 Gbps |
| Packet forwarding rate | 1.339 Mpps |
| Internal cache | 1 Mbits |
| PoE power supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
| PoE port | Ports 1 to 8 |
| Max. port power | 30 W |
| PoE power budget | 60 W |
| Max. power consumption | 65 W |
| General | |
| Shell | Metal material, fan-free design |
| Gross weight | 0.89 kg (1.96 lb) |
| Net weight | 0.35 kg (0.77 lb) |
| Dimension (L × H × D) | 170 mm × 27.6 mm × 93.1 mm |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 1.35 A |
| Power consumption in idle | 5W |
- Bảo hành: 24 tháng.
