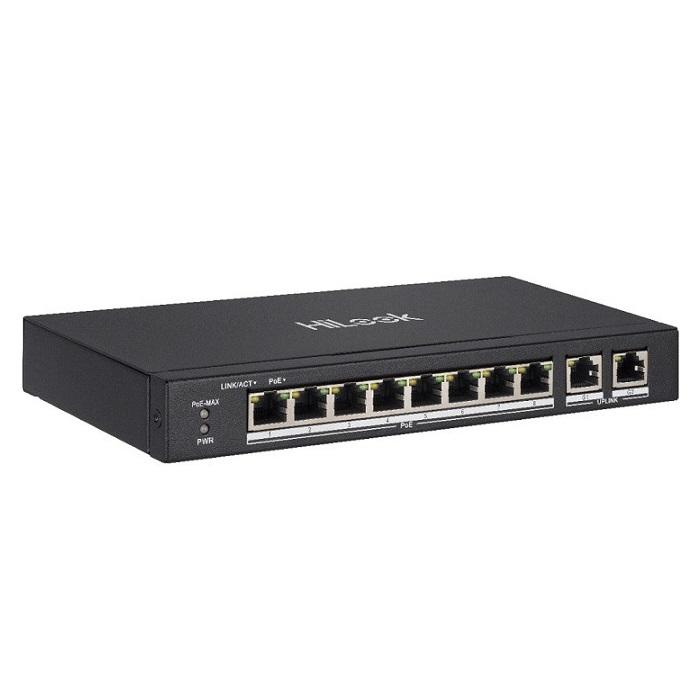

8-Port 100M Unmanaged PoE Switch HILOOK NS-0310P-60
- 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 250 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching
- Solid high-strength metal shell.
- Reliable fan-free design.
Specifications
| Model | NS-0310P-60 |
| Network parameters | |
| Port number | 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default), Extend mode |
| Ports for long-distance transmission | Ports 1 to 8 |
| MAC address table | 16K |
| Switching capacity | 5.6 Gbps |
| Packet forwarding rate | 4.1664 Mpps |
| Internal cache | 4 Mbits |
| PoE power supply | |
| PoE standard | Ports 1 to 8: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. |
| PoE port | Ports 1 to 8 |
| Max. port power | Ports 1 to 8: 30W |
| PoE power budget | 60W |
| Dialing function | |
| Long range | Ports 1 to 8: up to 250 m |
| General | |
| Shell | Metal material, fan-free design |
| Net weight | 0.555 kg |
| Dimension (L × H × D) | 217.6 × 103.35 × 27.8 mm |
| Operating temperature | -10°C to 40°C |
| Storage temperature | -40°C to 85°C |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 1.35 A |
| Power consumption in idle | <5W |
| Max. power consumption | 65W |
| Power source | 65W |
- Bảo hành: 24 tháng.
