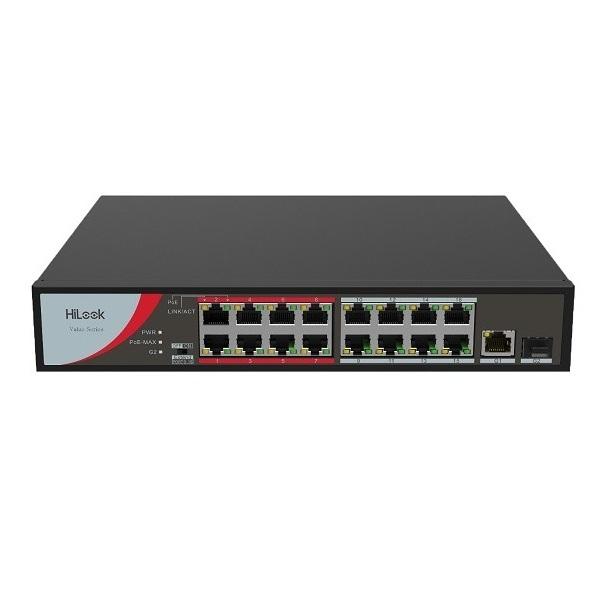

16-Port 100Mbps Long-Range Unmanaged PoE Switch HILOOK NS-0318P-130 (B)
- 16 × 100Mbps PoE ports, 1 × 1000Mbps RJ45 port, and 1 × 1000Mbps SFP fiber optical port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- High priority ports.
- 8-core power supply.
- Up to 250m transmission distance.
- 6 KV surge protection for PoE ports.
- PoE power management.
- 1000 Mbps network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
Specifications
| Model | NS-0318P-130 (B) |
| Network parameters | |
| Port number | 16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000Mbps SFP fiber optical port |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| High priority ports | Ports 1 to 8 |
| Ports for long-distance transmission | Ports 9 to 16 |
| MAC address table | 4K |
| Switching capacity | 7.2 Gbps |
| Packet forwarding rate | 5.356 Mpps |
| Internal cache | 2.75 Mbits |
| PoE power supply | |
| PoE power pin | Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
| Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply | |
| PoE port | Ports 1 to 16 |
| Max. port power | 30W |
| PoE power budget | 130W |
| Max. power consumption | 150W |
| General | |
| Shell | Metal material |
| Gross weight | 2.58 kg (5.69 lb) |
| Net weight | 1.8 kg (4.0 lb) |
| Dimension (L × H × D) | 266 mm × 44.5 mm × 220.8 mm |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | 40 °C to 85 °C (-40 °F to 185 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 100 to 240 VAC, 50/60 Hz, Max. 2.5 A |
| Power consumption in idle | 20W |
