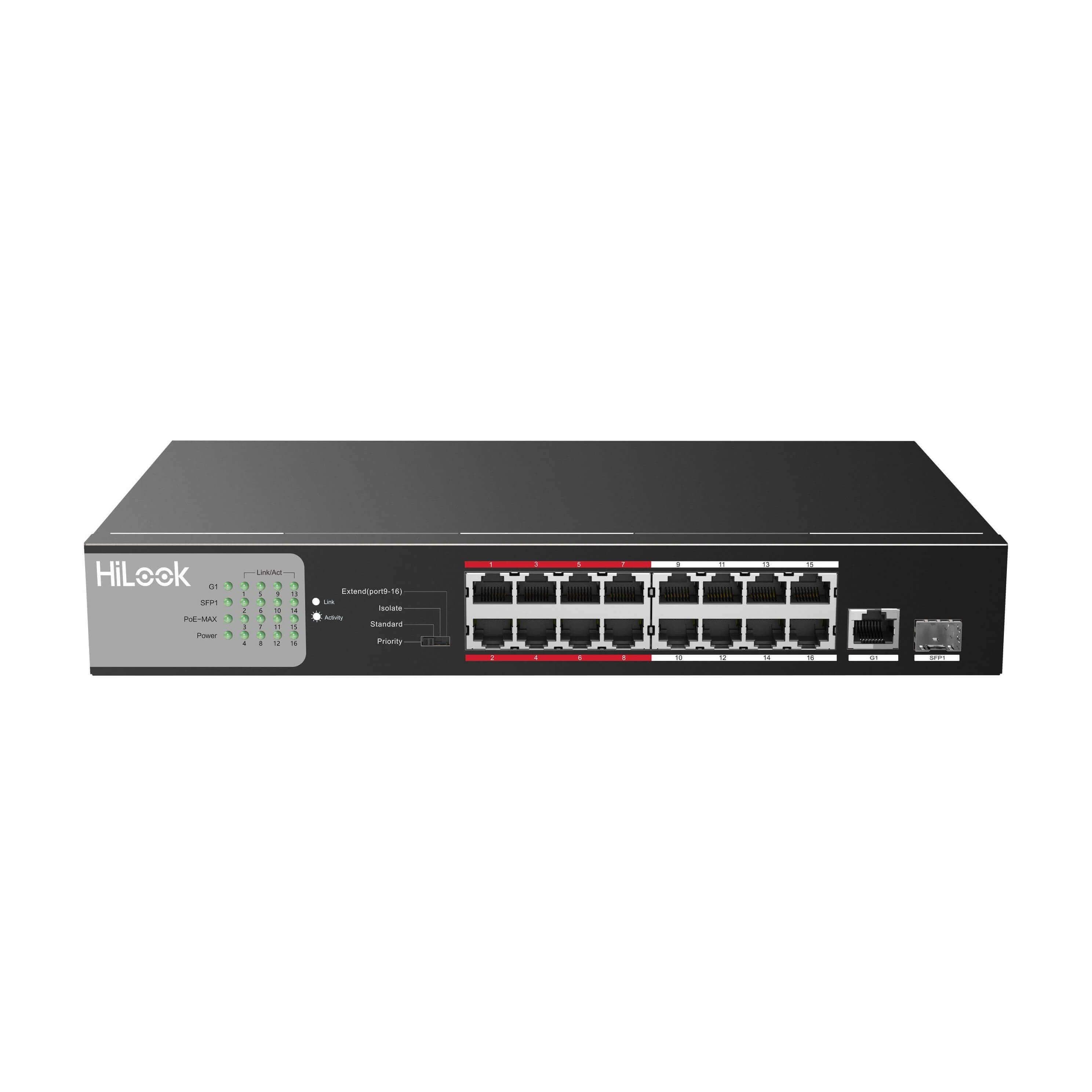

16-Port 100M PoE + 1-Port SFP 1000M Switch HILOOK NS-0318P-135
- L2, Unmanaged, 16-Port PoE 100M, 1-port RJ45 1000M, 1-port SFP 1000M, 802.3af/at.
- Ports 1 to 16 support IEEE 802.3af/IEEE 802.3at standard.
- When the switch is in Priority mode, it optimizes the cache capability of the ports. Ports 1 - 8 are high-priority ports, and all ports can communicate with each other.
- When the switch is in Standard mode, it is an ordinary switch, and all ports can communicate with each other.
- When the switch is in Isolate mode, all downlink ports of the switch cannot communicate with each other and can only communicate with G1 port and SFP port respectively.
- When the switch is in Extend mode, all ports can communicate with each other. In addition, the transmission rate of the ports 9 – 16 reduces to 10 Mbps.
- The maximum transmission distance is up to 250 meters.
- All ports support 6 kV lightning protection.
- This switch supports Auto MDI/MDIX.
- This switch supports store-and-forward.
- This switch supports MAC address auto learning and auto aging.
- This switch supports smart cache optimization.
- This switch supports rack mounting.
Specifications
| Model | NS-0318P-135 |
| Port | |
| Port amount | 18 |
| Port type | 16xRJ45, 10/100 Base-T(X) (Data/Power) 1x10/100/1000Base-Tport (Data) 1x1000Base-X SFP port |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at |
| Forwarding method | Store-and-forward |
| Flow control | Back-pressure flow control in IEEE 802.3x full duplex |
| Priority queue | 8 |
| MAC address table | 4K |
| QoS | Supported on ports 1 and 8 |
| Switching capacity | 7.2 Gbps |
| Packet forwarding rate | 5.36 Mpps |
| Physical appearance/structure | |
| Appearance | 0.6 mm sheet of galvanized metal without electric fan |
| Weight | 4.93 kg |
| Dimension | 294 mm × 178 mm × 44 mm |
| Mounting type | Rack mounting |
| Environment | |
| Operating temperature | (0 - 40) °C |
| Storage temperature | (-40 - 70) °C |
| Operating humidity | (10 – 90) % RH, non-condensing |
| Storage humidity | (5 – 90) % RH, non-condensing |
| Power supply | |
| Power input | AC: 100-240 V ~ 50/60 Hz |
| Reverse connection protection | Supported |
| PoE output power | 135 W |
| Power consumption | < 150 W |
| Other parameters | |
| LED indicator | Link/Act LED indicators, PoE-MAX LED indicator, SFP1 LED indicator, G1 LED indicator, Power LED indicator |
- Bảo hành: 24 tháng.
