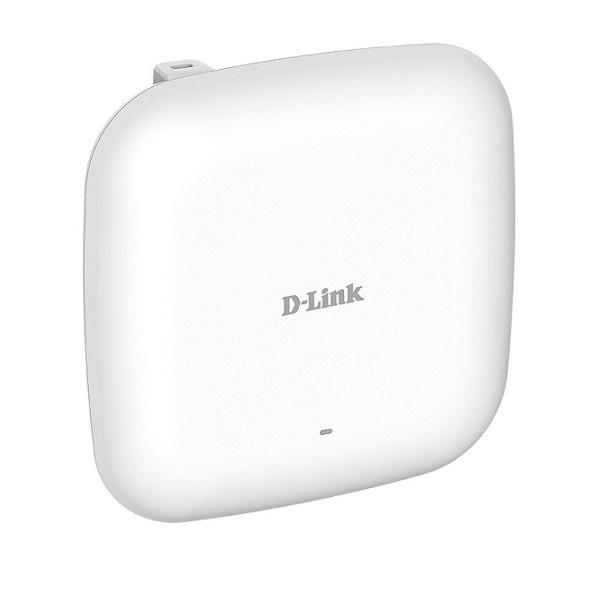

Nuclias Connect AC1200 Wave 2 Access Point D-Link DAP-2662
- Easy to manage with D-Link’s free management software-based solution, Nuclias Connect
- Superior throughput with dual-band transfer speeds up to 300 Mbps in the 2.4GHz band and 867Mbps in the 5GHz band
- Band Steering makes sure connected devices get the best available frequency band
- Supports Power over Ethernet (802.3af) for simpler installation with less cable clutter
- Simple, soft-edge design, ideal for subtle visibility when wall or ceiling mounted indoors (mounting hardware included)
- Supports multiple VLANs for enhanced network management and up to 16 SSID setups
- Supports WPA3™ - the latest WiFi security for more protection
- Gigabit LAN port for high-capacity backhaul to the wired network
- Supports multiple AP modes for performance optimization based on your network’s needs
- MAC Address Filtering and WLAN Partitioning ensure control of your network’s access
- Captive Portal with industry-standard authentication for enhanced access management
- Works as a standalone AP or as part of a centralized, scalable multi-device deployment
Đặc tính kỹ thuật
| Model | DAP-2662 |
| General | |
| Device Interfaces | IEEE 802.11a/b/g/n/ac wireless 1 x Gigabit LAN (PoE supported) |
| Standards | IEEE 802.11a/b/g/n/ac IEEE 802.3u/ab IEEE 802.3az Energy-Efficient Ethernet (EEE) IEEE 802.3af Power over Ethernet |
| Antennas | 4 x internal dual-band antennas • 2 x 3.8 dBi at 2.4 GHz • 2 x 3.8 dBi at 5 GHz |
| Operating Frequency | 2.4 GHz band: 2.4 to 2.4835 GHz 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz |
| Maximum Output Power | 2.4 GHz band: 26 dBm 5 GHz band: 26 dBm |
| Data Signal Rate | 2.4 GHz band: Up to 300 Mbps 5 GHz band: Up to 866 Mbps |
| Functionality | |
| Security | WPA-Personal WPA-Enterprise WPA2-Personal WPA2-Enterprise WEP 64/128-bit encryption SSID broadcast disable MAC address access control Internal RADIUS server |
| Network Management | Telnet Secure Telnet (SSH) Web (HTTP) Secure Socket Layer (SSL) Traffic control D-Link Nuclias Connect |
| LEDs | Power/status |
| Other Features | Fast Roaming Support with 802.11k, 802.11v, and 802.11r Passpoint Hotspot 2.0 Support |
| Physical | |
| Dimensions | 170 x 170 x 28 mm |
| Weight | 350 g |
| Power Supply | External power adapter: 12 V/2.5 A IEEE 802.3af PoE |
| Maximum Power Consumption | 6.5 W |
| MTBF | 341,897 hours |
| Temperature | Operating: 0 to 40 °C Storage: -20 to 65 °C |
| Humidity | Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing |
- Bảo hành: 2 năm.
