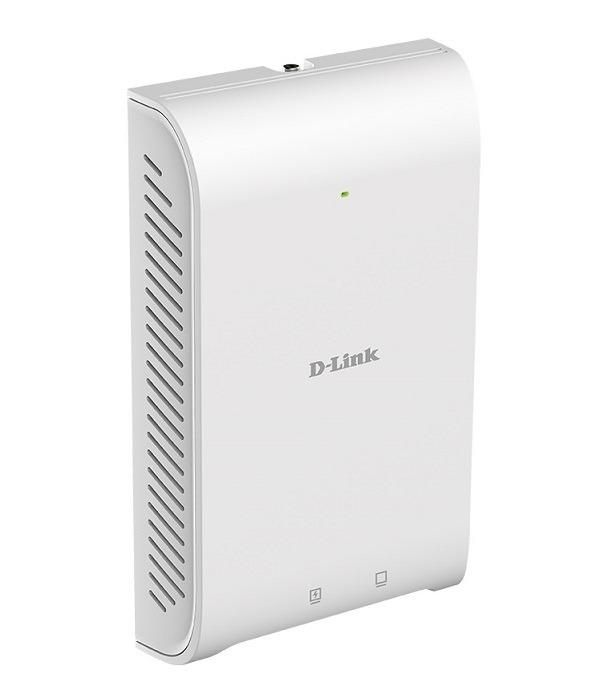

Nuclias Connect AC1200 Wave 2 Wall-Plate Access Point D-Link DAP-2622
- New generation IEEE 802.11ac Wave 2 wireless with high-speed 1200 Mbps throughput
- Powerful management, monitoring, and troubleshooting functionality with Nuclias Connect
- Flexible access through web (HTTP), SSL, SSH and Telnet
- Three LAN ports offer expansive backhaul to your wired network, eliminating bottlenecks at the AP
- Support for Power over Ethernet 802.3at means less wires, for cleaner and easier deployment
- Stay secure with WPA2/WPA™ Personal & Enterprise wireless encryption
- Supports multiple AP modes for performance optimization based on your network’s needs
- MAC address filtering and WLAN partitioning ensure ultimate control of your network
- Captive portal with industry-standard authentication for enhanced access management
- Wall-plate design for installation on Ethernet wall sockets
- Compatible with both US and EU power outlets
- Features a PoE Out port for powering PoE-capable devices and connecting them to the network
- PoE Injector and Power Adapter Not Included.
Specifications
| Model | DAP-2622 |
| General | |
| Device Interfaces | 1 x 10/100/1000 Mbps Gigabit PoE Uplink Port 1 x 10/100/1000 Mbps Gigabit PoE Out Downlink Port 1 x 10/100/1000 Mbps Gigabit Ethernet Downlink Port |
| LEDs | Power/Status |
| Antennas | 2 x internal |
| Data Signal Rate | Up to 1200 Mbps |
| Functionality | |
| Standards | IEEE 802.11a/b/g/n/ac, IEEE 802.3u/ab, IEEE 802.3az Energy-Efficient Ethernet (EEE), IEEE 802.3at Power over Ethernet |
| Operating Frequency | 2.4 to 2.4835 GHz, 5.15 to 5.85 GHz |
| Security Protocol | WPA2/WPA™ Personal/Enterprise, WEP 64/128-bit, SSID broadcast disable, MAC address access control, internal RADIUS server |
| Software | |
| Network Management | Telnet, Secure Telnet (SSH), Web (HTTP), Secure Socket Layer (SSL), Traffic control, D-Link Nuclias Connect |
| Physical | |
| Power Supply | IEEE 802.3at PoE |
| Max. Power Consumption | 9.5 W, 21.5 W (including PoE output) |
| MTBF | > 30,000 hours |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 65°C |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% to 95% |
| Weight | 212g |
| Dimensions | 154.1 x 95 x 27.4 mm |
- Bảo hành: 2 năm.
