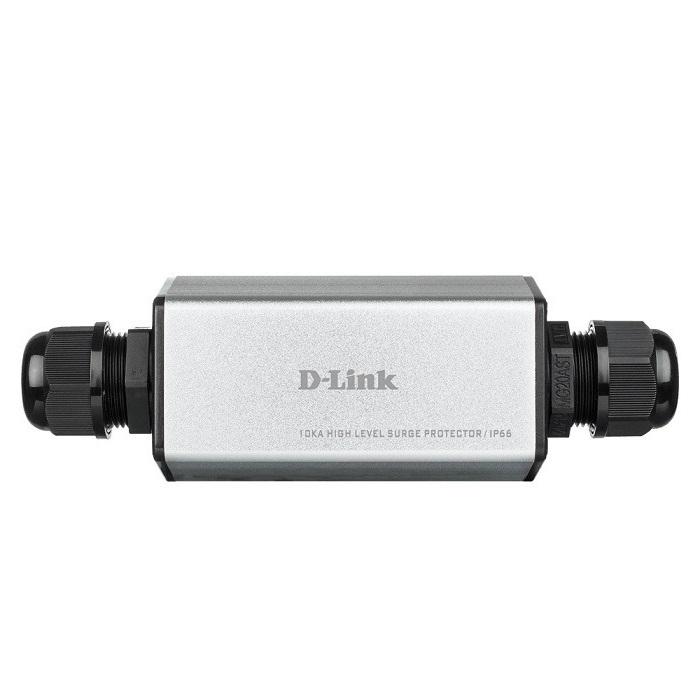

Outdoor PoE Lightning Protector D-Link DPE-SP110
High Standard of Protection
- 10 kA impulse discharge current
- IP66-rated water and dust-resistant casing
Easy to Use
- Suitable for PoE equipment and Ethernet devices
- Plug and Play, no software required
- 10/100/1000 Mbps connection up to 100 meters
- Compact and easy-to-install design
Protection Mode
- Common mode up to 10 kA
- Differential mode up to 1 kA
Surge Compliance
- IEC 61643-21
- IEC 61000-4-5
- ITU-T K-Series
PoE Passthrough
- Supports IEEE 802.3af/at
- Supports up to 35 W PoE passthrough
- Protects all four pairs of the Ethernet cable
Specifications
| Model | DPE-SP110 |
| Interface | |
| Line In Port (Line IN) | 1 x RJ-45 port (power + data in) Compatible with 10/100/1000BASE-T PoE passthrough |
| Line Out Port (Device) | 1 x RJ-45 port (power + data out) Compatible with 10/100/1000BASE-T PoE passthrough |
| Performance | |
| Maximum Discharge Current | 10 kA |
| Common Mode (Line-to-Ground) Protection | 20 kV (10/700 us) 10 kA (8/20 us) |
| Differential Mode (Line-to-Line) Protection | 6 kV (10/700 us) 1 kA (8/20 us) |
| Clamping Voltage (Line-to-Ground) | 600 V at 10 kA |
| Clamping Voltage (Line-to-Line) | 20 V at 1 kA |
| Surge Protection Response Time | 5ns |
| Ethernet PoE/Data Line | Added protection for 10/100/1000 Mbps Ethernet ports Added protection for all RJ-45 8-pin assignments Added protection for all four pairs of all types of Ethernet cables including Cat 5, Cat 5E, and Cat 6 |
| PoE Passthrough | Supports IEEE 802.3af/at Supports up to 35 W PoE passthrough |
| Physical | |
| Dimensions (L x W x H) | 163 x 55 x 41.8 mm |
| Weight | 220g |
| Maximum PoE Operation DC Voltage | 57 V DC |
| Maximum PoE Operation DC Current | 0.6A |
| Operation Temperature | -40 to 75 °C |
| Storage Temperature | -40 to 75 °C |
| Humidity | 0 to 95%, non-condensing |
| Materia | Aluminium IP66 water-resistant enclosure |
- Bảo hành: 12 tháng.
