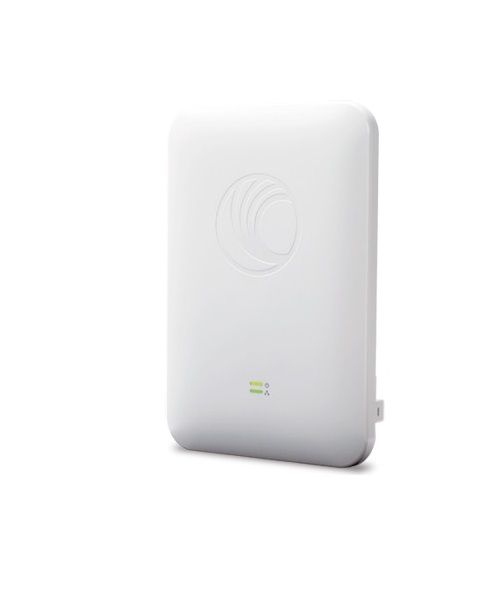

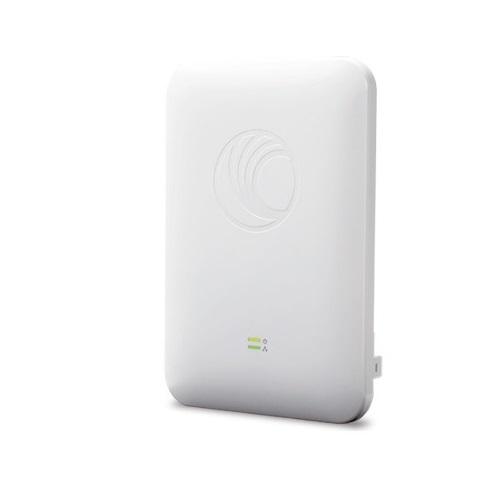

Outdoor Wifi Access Point Cambium E501S
- Cambium E501S is medium-to highdensity outdoor Wi-Fi access point (AP) with a multifunctional design.
- Cambium E501S has internal antennas and an integrated mounting bracket to simplify installation. Perfect for a variety of applications, from omni-directional coverage to long-range Wi-Fi or high-interference outdoor where a directional RF beam is required.
- The e501S has a 23 dBm front-to-back signal delta for excellent isolation in high-interference environments.
Specifications
| Model | E501S |
| Access Point Specifications | |
| Radios | 1 x 5 GHz radio (802.11 a/n/ac), 2x2 1 x 2.4 GHz (802.11 b/g/n), 2x2 SU-MIMO / MU-MIMO: 2 streams |
| SSID Security | WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max PHY Rate | 2.4 GHz radio: 300 Mbps 5 GHz radio: 867 Mbps |
| Ethernet | Two IEEE gigabit Ethernet auto sensing |
| Antenna | Internal sector antenna 10.5 dBi (2.4 GHz) 13 dBi (5 GHz) |
| Max EIRP | 36 dBm (2.4 GHz) 36 dBm (5 GHz) (EIRP limited by country regulations) |
| WLAN | 256 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF |
| Power | 802.3af or 802.3at powered device Typical load: 8 W, Max: 12.85 W 25 W when connected to full 802.3af load on GE 2 |
| Dimensions | 300 mm x 204 mm x 65 mm |
| Weight | 881 g |
| Security | Kengsington Key Slot |
| LED | Two dual-color LED |
| Ambient Operation Temperature | -30ºC to 60ºC |
| Storage Temperature | -40ºC to 70ºC |
| Humidity | 95% RH non-condensing |
| LTE Band Filter | 38, 40 |
| Mount Options | Integrated pole 38 mm and 76 mm (1.5 in and 2.99 in), wall mount |
| Certifications (compliance) | Wi-Fi Alliance 802.11 a/b/g/n/ac, Passpoint 2.0FCC, ETSI, CE, EN 60601-1-2, IEC60950, Ul2043 |
| Network Specifications | |
| Authentication Encryption | 802.1x EAP-SIM/AKA/AKA’/FAST, EAP-PEAP, EAP-TTLS, EAP-TLS/MSCHAPv2, PEAPv0/ PEAPv1 MAC authentication to local database (on AP, on Controller) or external RADIUS. MAC auth fallback to guest portal |
| Scheduled WLAN | On/off by day, week, time of day |
| QoS | 802.11e/WMM QoS. DSCP/ToS mapping |
| VLAN | 802.11Q, max 4096 |
| Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Mesh | Multi-hop (3), either band |
| Channel Selection | Auto RF: Manual, or automatic |
| Auto TX Power | Auto RF: automatically adjust max transmit power |
| Network | NAT, NAT logging firewall, DOS protection, L2/L3/DNS ACL, DHCP server, DHCP Relay option 82 LLDP, IGMP v1, v2, v3 VLAN Pooling, RADIUS attribute VID VLAN per SSID, per user Integrated WIDS (wireless intrusion detection) |
| Band Steer Load Balance | Yes |
| Tunnel | L2TP, L2oGRE, PPPoE |
| Network and RF Management Tools | Out-of-band RF spectrum analysis, radio self test network assurance, RF monitor with chn/noise/interference, wired and wireless remote packet capture, auto logging, ZapD performance tool, rogue AP detection, ultralow power mode, honeypot control |
| Management | |
| Interfaces | HTTP / HTTPS web interface, SSL, Telnet SNMP V1, V2, V3 Syslog, SNMP traps, NTP |
| Deployment | cnMaestro Cloud, cnMaestro on-premises, Standalone AP |
| Services | Monetized, cloud managed guest portal with design tools |
| APIs | RESTful management and statistics API Presence location API Splunk WebSocket integration, WebSocket DNS, NAT, TCP connection log |
| Captive Portal | Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS external portal/ authentication Active Directory integration, Google, Facebook, Office 365 integration Data rate, time duration, data throughput limit Server DNS logging |
| Hotspot 2.0 | Hotspot 2.0/Passpoint 2.0 |
| Accounting | RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM |
| Service Availabilty | Critical network resource monitor with automatic shutdown maintains device connectivity |
