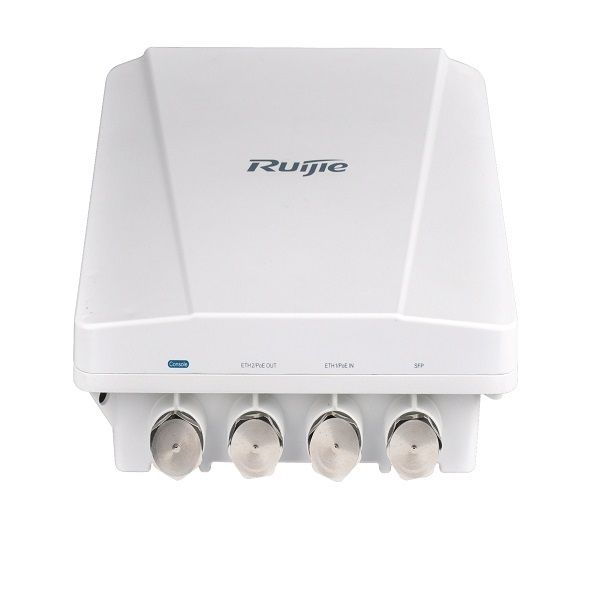

Outdoor Wireless Access Point RUIJIE RG-AP630(IDA2)
- Ruijie RG-AP630 (IDA2) is Ruijie’s top-class 802.11ac Wave 2 wireless access points for next-gen high-speed wireless network applications.
- The RG-AP630(IDA2) supports 2.533Gbps access rate. The RG-AP630(IDA2) takes full care of security, RF control, mobile access, QoS, seamless roaming and other Wi-Fi aspects. Teaming up with Ruijie RG-WS Wireless Controller Series, the APs offer Wi-Fi user data forwarding, advanced security and access control with ease.
- The industrial-class AP enclosure (IP67 rated) can withstand extreme outdoor conditions and hence simplify device installation and maintenance. The RG-AP630(IDA2) is built-in with directional antenna An extensive collection of external antennas is also available to overcome various deployment challenges. The AP support automatic switching between the external and internal antennas.
Specifications
| Model | RG-AP630(IDA2) | |
| Target Deployments | For big campus, wireless city, harbour, storage room, mine | |
| Basic Specifications | Radio | Concurrent dual-radio dual-band |
| Protocol | 802.11a/b/g/n/ac Wave2 | |
| Antenna | Built-in Directional Smart Antenna (support external/internal antenna switching) | |
| Antenna Loba Orientation | Internal Directional: Horizontal 60 degrees, Vertical 30 degrees | |
| Antenna Gain | 10dBi | |
| Max Throughput | Build-in antenna model: 800Mbps@2.4G 1733Mbps@5G 2.533Gbps per AP; External antenna model: 600Mbps@2.4G 1300Mbps@5G 1.9Gbps per AP | |
| Maximum Transmit Power | 27dBm | |
| Adjustable Power | 1dBm | |
| IP Rating | IP67 | |
| Ports | Service Port | One 10/100/1000Base-T Port (ETH1/PoE IN); One 10/100/1000Base-T Port (ETH2); One 1000M SFP Port (Combo Port) |
| Management Port | 1 Console Port (RJ45) | |
| Power | Power Supply | PoE+ (802.3at) |
| Power Consumption | <25W | |
| WLAN | Maximum clients per AP | Up to 512 |
| SSID capacity | Up to 16 per radio Up to 32 per AP | |
| SSID hiding | Support | |
| Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| X-speed | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based speed control | |
| Preference for 5GHz (band select) | Support | |
| Wireless position tracking | Support | |
| Dynamic Frequency Selection (DFS) | Future Release Support | |
| Security | PSK, Web, and 802.1x authentication | Support |
| Data encryption | WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) | |
| QR code authentication | Support | |
| SMS authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| WAPI | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| Wireless Intrusion Detection System(WIDS) | Support | |
| Wireless Intrusion Prevention System (WIPS) | Support | |
| Routing | IPv4 address | Static IP address or DHCP reservation |
| IPv6 CAPWAP tunnel | Support | |
| ICMPv6 | Support | |
| IPv6 address | Manual or automatic configuration | |
| Multicast | Support | |
| Management and Maintenance | Network management | SNMP v1/v2C/v3, Telnet, SSH, TFTP, and web management |
| Visualized wireless heat map analysis | Support (need to integrate with SNC) | |
| Real-time spectrum analysis | Support (need to integrate with SNC) | |
| Fault detection and alarm | Support | |
| Cloud AC management | Support | |
| Statistics and logs | Support | |
| FAT/FIT switching | The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. | |
| External Characteristics | Lock | Support |
| LED Indicators | Power status and WDS signal strength | |
| Relevant Standard | Wi-Fi Alliance Certification | Support |
| Safety Standard | GB4943, EN/IEC 60950-1, EN/IEC 60950-22 | |
| EMC Standard | GB9254-2008, EN301 489, EN55022 | |
| Health Standard | EN 50385 | |
| Radio Standard | FCC Part15,EN300328, EN301893 | |
| Vibration Standard | GB/T 2423 | |
| Specifications | Dimensions (W x D x H) | 276 × 246 × 90 (mm) |
| Weight | <2.5kg | |
| Work Environment | Temperature | Operating Temperature: -40°C to 65°C (heater module will be enabled at -15°C) Storage Temperature: -40°C to 85°C |
| Humidity | Operating Humidity: 0% to 100% (non-condensing) Storage Humidity: 0% to 100% (non-condensing) | |
| Installation Mode | Wall/pole-mount installation | |
- Bảo hành: 3 năm.
