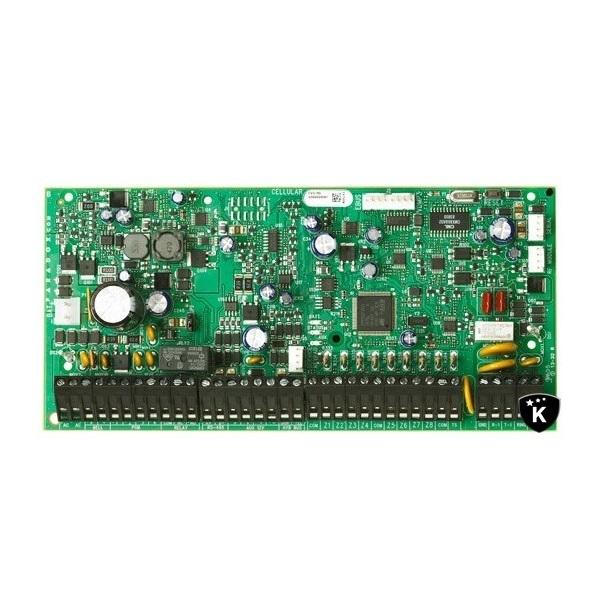

Bảng điều khiển 192 vùng có dây PARADOX EVOHD
- Up to 192 zones (8 on-board)
- 8 Partitions
- Up to 999 Users
- 5 on-board PGMs
- Connect up to 254 modules
- Includes metal box 28 cm x 28 cm x 7.6 cm (11 in x 11 in x 3 in)
- Faster - dialer over VOIP lines at 1200 baud
- 2.5A switching
- 2A power available for modules/devices (requires a 75VA transformer)
- Efficient battery charging - up to 1.5A
- Provides continuous power, management and two-way communication between control panel and modules
- Efficient and effective use of zone deployment
- Integrated tamper reporting of EVOHD connected devices without additional wiring
- 4 on-board, solid-state PGMs (2-4)
- 1 on-board 5A relay PGM
- PGM1 may be used as a 2-wire smoke input
Specifications
| Model | EVOHD |
| Maximum Zones | 192 |
| On-Board Zones | 8 (16 with ATZ + Tamper Input) |
| Partitions | 8 |
| Users | 999 |
| In-Field Firmware Upgradeable | Yes |
| Access Control | 32 doors |
| Events Buffered | 2048 |
| PGMs | 250 (5 on board) |
| Siren | Wired |
| Total Expansion Modules | 254 |
| Landline Speed for Programming | 300/ 1200 Bps |
| Internal Power Supply | 2.5A switching |
| Input Voltage | 16 VAC, 40 / 75 VA, 50-60 Hz |
| Battery | 12 VDC, 7 Ah minimum |
| Battery Charging Current | Up to 1.5A |
| Auxiliary Output | 13.8 VDC 2A (requires a 75 VA transformer) typical sustained with fuseless shutdown at 2.5A |
| Bell Output | 1A typical, fuseless shutdown at 3A |
| PGM Output | PGM1: Open collector output PGM2 to PGM4: 100 mA solid-state relays with +/- trigger PGM5: Form C relay output rated at 5A / 28 VDC N.O / N.C. |
| Operating Temperature | -10 to 55°C |
| Dimensions | 20.2 x 9.6 x 4.4 cm |
- Thương hiệu của CANADA.
- Bảo hành: 24 tháng.
