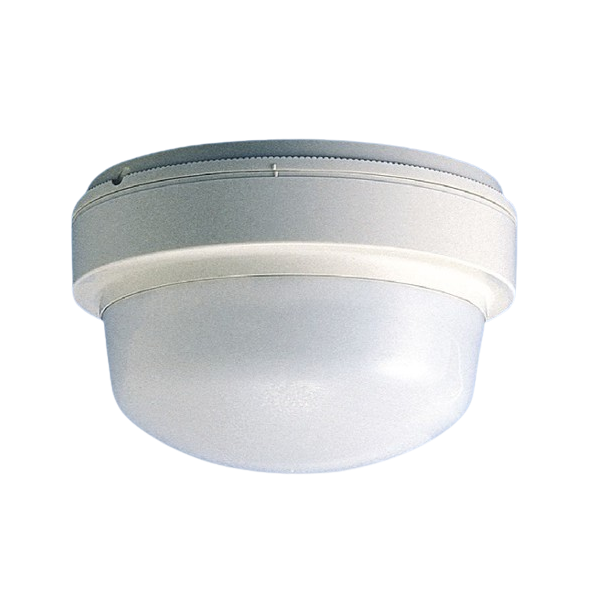

Passive Infrared Sensor TAKEX PA-7030E
- General description
+ The PA-7000 series 'Digital-Quad' passive infrared sensors are the newest line of quad element PIR's, from the originator of quad passive infrared sensors. Each unit contains two dual element sensors which are linked by a digital central processing unit. This results in calculation of a true motion signal in order to initiate an alarm.
+ It can detect a human like pattern definition and reject other potential false alarm causes.
- Automatic temperature compensation circuit
+ Sensitivity of the unit is automatically adjusted relative to the environmental temperature.
+ The sensitivity becomes maximum at body temperature range and decreases when the temperature differential changed either higher or lower.This eliminates the need for seasonal manual adjustments.
- Alarm memory
+ Unit contains special circuitry to indicate that it has activated an alarm during its armed period.
- Remote control LED
+ Allows the walk test LED to be enabled/ disabled remotely through a control panel.
- Ceiling or wall mounting available
+ Flush mounting available as an option.
- Easy installation/location
+ Convenient twist lock base and built-in zone locator.
Thông số kỹ thuật
| Model | PA-7030E |
| Area | Long type |
| Coverage | Max. 100' (30m) |
| Number of sensitive zone | 20 (10 pair) |
| Mounting position | Indoor ceiling or wall |
| Supply voltage | 9V to 18V DC, No-polarity |
| Power consumption | 15mA (at 12V), 20mA (at aim adjustment) |
| Alarm output | 0.1A, 30V, 1C (SPDT) Reset: 2 sec. +/-1sec. |
| Tamper output | 0.1A, 30V, 1b (SPST) |
| Ambient temperature range | +14F to +122F (-10C to + 50C) |
| Memory function | Control at terminal 8: Lights up for memory indication |
| LED control | Control at terminal 9 or built-in switch |
| Weight | 11.6 oz (330g) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
