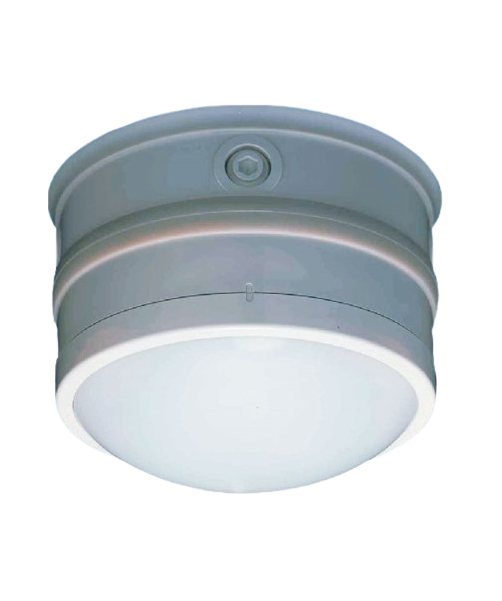

Passive Infrared Sensor TAKEX PA-8420E
- Protection Area Especially Designed To Protect From High Mounting Positions
+ With the unique high-density protection field created by the 4 mirrors equipped inside the unit, it can be used with confidence to protect places with ceilings between 4 and 8 meters high.
- Suitable For Indoor And Outdoor Use
+ With a rain-proof casing, these units are suitable for both internal and external applications.
- Strong Housing Cases
+ The casings of these units are made from AES resin which improves the unit's resistance to impact.
+ Ideal for use in locations such as sports halls where unit may be subjected to impact.
- External Applications
+ The units are constructed with weather-resistant seals to prevent water from entering.
(For exposed wiring, use water-proof grommet or conduit.).
Functions
- L/C (LED control) function
+ The unit is equipped with L/C function by which the LED function can be remotely activated/de-activated.
+ L/C function enables simple walk test functionality after unit is installed.
- A/C (Area control) function
+ The unit is equipped with A/C function by which area coverage can be remotely disabled/enabled.
Other Features
- N.C./N.O. output silent relay
+ Photo MOSFET switch relay engaged at alarm output.
- Tamper Switch
+ The units have independent tamper outputs activated by removal of cover.
- Pulse count selectable (Only applicable to PA-8410E)
+ Pulse count is selectable for one, two, three and four counts.
- Sensitivity adjustment
+ Sensitivity is adjustable for 60%, 80%, 100% and 120%.
Thông số kỹ thuật
| Model | PA-8420E |
| Detection system | Passive infrared |
| Coverage | Vertical Curtain 66' (20m) Max. 30 Zones(60 beams) |
| Coverage adjustment | Vertical : 24° Horizontal : +/-15° |
| Mounting position | Indoor or outdoor ceiling |
| Installation height | 13'(4m) to 26'(8m) |
| Supply voltage | 9 to 30V DC (non-polarity) |
| Current consumption | 30mA Max. |
| Alarm output | Dry contact(semi-conductor) output (N.C./N.O.) 24V (AC/DC) 0.25A (resistive load) (protective resistor 3.3Ω) Warm up : Approx.1min.(No alarm condition) One-shot output at detection (Approx.2sec.) Continuously output when detecting functional troubles. Continuously output when detecting low supply voltage. |
| Tamper output | Dry contact output : (N.C.) 30V (AC/DC) 0.1A (resistive load) Tamper output : Real time output |
| Alarm LED | Red LED Blinks during warm up (Approx. 1min.) One shot lights (Approx. 2sec.) at detection Continuously lights when detecting functional troubles. Continuously lights when detecting low supply voltage. |
| Functions | Trouble alarm Low supply voltage alarm Tamper signal LED control(L/C) Area control(A/C) Alarm LED(ON/OFF) Sensitivity adjustable for 60/80/100/120% Pulse count selectable for 1/2/3/4 |
| Ambient temperature range | +4F to +122F(-20C to +50C) without condensation |
| Wiring | Terminals |
| Weight | 33.25oz (950g) |
| Appearance | Body : AES resin , Cover : PE resin |
| Accessories | Water-proof grommet : 1pce, tapping screw : 2pcs |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
