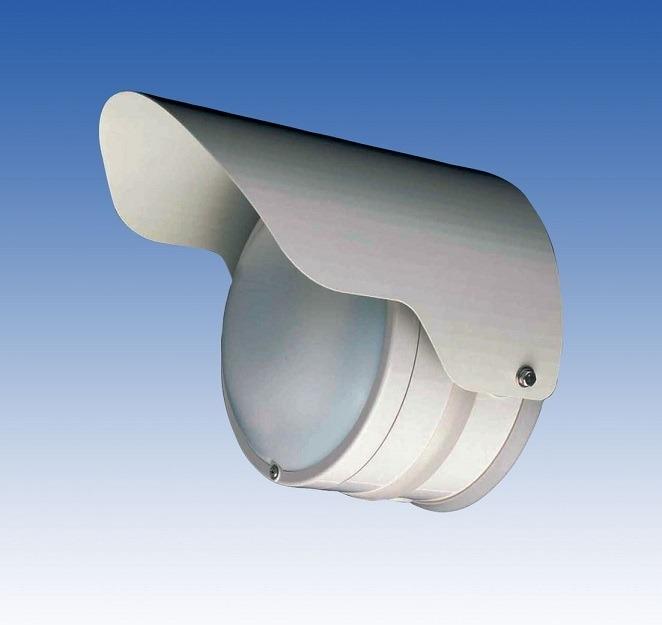

Passive Infrared Sensor TAKEX PIR-30WE
- Protection Area Especially Designed To Protect From High Mounting Positions: Offering a choice of Long Range narrow field, or Mid Range Wide Angle and equipped with N.C./N.O. output, these units are ideal for camera / light activation, or as components in security systems.
- Suitable For Indoor And Outdoor Use: With a rain-proof casing, these units are suitable for both internal and external applications.
- Strong Housing Cases
+ The casings of these units are made from AES resin which improves the unit's durability and resistance to conditions such as wind, rain and direct sunlight.
+ The long steel hood helps protect the lens from direct sunlight and bird doroppings problems.
- Functions
+ L/C (LED control) function: The unit is equipped with L/C function by which the LED function can be remotely activated/de-activated. L/C function enables simple walk test functionality after unit is installed.
+ Tamper switch: The units have independent tamper outputs activated by removal of cover.
+ Sensitivity adjustment: Sensitivity is adjustable between 30% and 170%.
+ Optical Viewfinder: Attached Viewfinder enables easy set up for zone coverage.
- Rain-Proof Structure: The units are constructed with weather-resistant seals to prevent water from entering.
Đặc tính kỹ thuật
| Model | PIR-30WE |
| Detection system | Passive infrared |
| Coverage | Wide angle 100' (30m) Max. 30 Zones(60 beams) |
| Coverage adjustment | Vertical: 10° Horizontal: +/-5° |
| Mounting position | Indoor or outdoor wall |
| Supply voltage | 9 to 30V DC (non-polarity) |
| Current consumption | 25mA Max. |
| Alarm output | - Dry contact(semi-conductor) output (N.C./N.O.) - 24V (AC/DC) 0.25A (resistive load) (protective resistor 3.3Ω) - Warm up: Approx.1min.(No alarm condition) - One-shot output at detection (Approx.2sec.) - Continuously output when detecting low supply voltage. |
| Tamper output | - Dry contact output : (N.C.) - 30V (AC/DC) 0.1A (resistive load) - Tamper output : Real time output |
| Alarm LED | - Red LED - Blinks during warm up (Approx. 1min.) - One shot lights (Approx. 2sec.) at detection - Continuously lights when detecting low supply voltage.A18 |
| Functions | - Low supply voltage alarm - Tamper signal - LED control(L/C) - Alarm LED(ON/OFF) - Sensitivity adjustable between 30% and 170% |
| Ambient temperature range | +4F to +122F(-20C to +50C) without condensation |
| Wiring | Terminals |
| Weight | 56oz(1600g) |
| Appearance | Body: AES resin , Cover: PE resin |
| Accessories | Water-proof grommet: 1pce, tapping screw: 2pcs |
- Bảo hành: 12 tháng.
