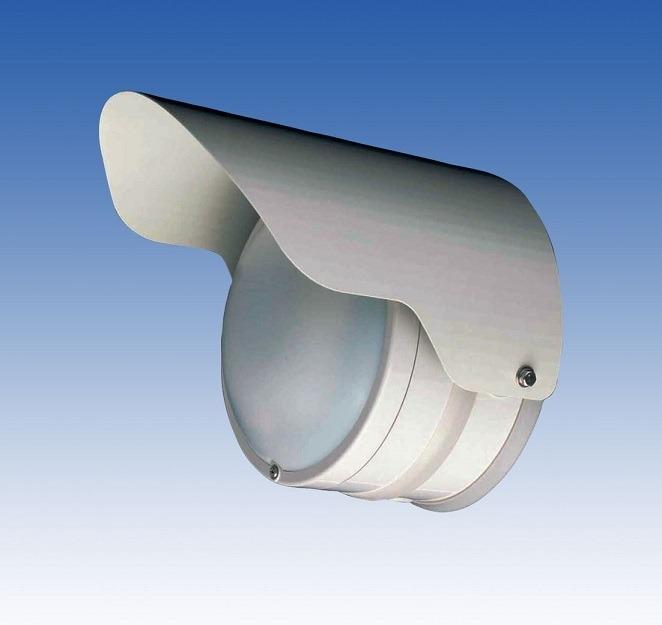

Passive Infrared Sensor TAKEX PIR-50NE

Passive Infrared Sensor TAKEX PIR-50NE

  • MS 000003254
  • TAKEX
Giá : 11,583,000 vnđ (Đã bao gồm VAT)

Passive Infrared Sensor TAKEX PIR-50NE

Passive Infrared Sensor TAKEX PIR-50NE

- Protection Area Especially Designed To Protect From High Mounting Positions: Offering a choice of Long Range narrow field, or Mid Range Wide Angle and equipped with N.C./N.O. output, these units are ideal for camera/light activation, or as components in security systems.

- Suitable For Indoor And Outdoor Use: With a rain-proof casing, these units are suitable for both internal and external applications.

- Strong Housing Cases

   + The casings of these units are made from AES resin which improves the unit's durability and resistance to conditions such as wind, rain and direct sunlight.

   + The long steel hood helps protect the lens from direct sunlight and bird doroppings problems.

- Functions

   + L/C (LED control) function: The unit is equipped with L/C function by which the LED function can be remotely activated/de-activated. L/C function enables simple walk test functionality after unit is installed.

   + Tamper switch: The units have independent tamper outputs activated by removal of cover.

   + Sensitivity adjustment: Sensitivity is adjustable between 30% and 170%.

   + Optical Viewfinder: Attached Viewfinder enables easy set up for zone coverage.

- Rain-Proof Structure: The units are constructed with weather-resistant seals to prevent water from entering.

Thông số kỹ thuật

ModelPIR-50NE
Detection systemPassive infrared
CoverageVertical Curtain
165' (50m) Max.
8 Zones(16 beams)
Coverage adjustmentVertical: 10°
Horizontal: +/-5°
Mounting positionIndoor or outdoor wall
Supply voltage9 to 30V DC (non-polarity)
Current consumption25mA Max.
Alarm output- Dry contact(semi-conductor) output (N.C./N.O.)
- 24V (AC/DC) 0.25A (resistive load) (protective resistor 3.3Ω)
- Warm up: Approx.1min.(No alarm condition)
- One-shot output at detection (Approx.2sec.)
- Continuously output when detecting low supply voltage.
Tamper output- Dry contact output : (N.C.)
- 30V (AC/DC) 0.1A (resistive load)
- Tamper output : Real time output
Alarm LED- Red LED
- Blinks during warm up (Approx. 1min.)
- One shot lights (Approx. 2sec.) at detection
- Continuously lights when detecting low supply voltage.
Functions- Low supply voltage alarm
- Tamper signal
- LED control(L/C)
- Alarm LED(ON/OFF)
- Sensitivity adjustable between 30% and 170%
Ambient temperature range+4F to +122F(-20C to +50C) without condensation
WiringTerminals
Weight56oz(1600g)
AppearanceBody: AES resin , Cover: PE resin
AccessoriesWater-proof grommet: 1pce, tapping screw: 2pcs

- Bảo hành: 12 tháng.
