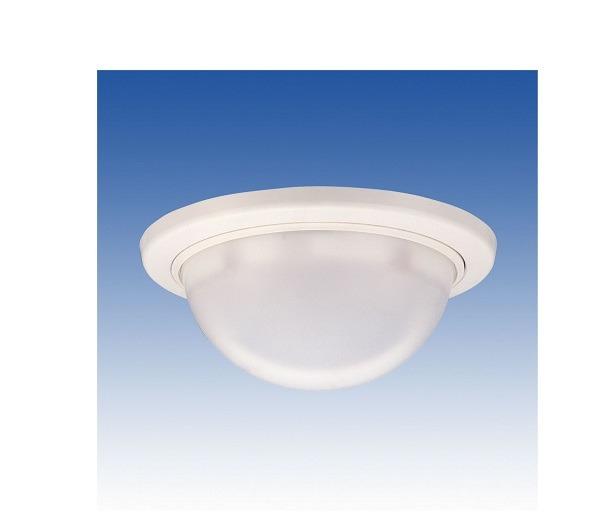

Passive Sensor TAKEX BUS-6805/B
- Ceiling mount passive sensor for BUSNET.
Features
- 2 to 4.9m (6.6 to 16ft) installation height.
- Ceilling mount desigh.
- Detachable base unit with snap-in/out sensor design.
- Slim and compact 47mm (1.85-inch) profile.
Specification
| Model | BUS-6805/B |
| Detection system | Passive infrared (Twin mirror) |
| Coverage | 4m (13ft) spot |
| Transmission signal | Normal status signal, Alarm signal, Low power supply signal |
| Supply Voltage | 9 to 30V DC (polarity) |
| Current Consumption | 20mA Max |
| Features | - Alarm memory - Pulse count selectable |
| Ambient Temperature | -15°C to +55°C (+5°C to+131°C) |
| Mounting Position | Ceiling, Wall lindoor |
| Optional | Ceiling/ wall mount attachment |
| External Dimensions | 125dia. x 56.5 mm ( 4.72 dia. x 1.85 inch) |
| Weight | 130g (4.6oz) |
- Bảo hành: 12 tháng.
