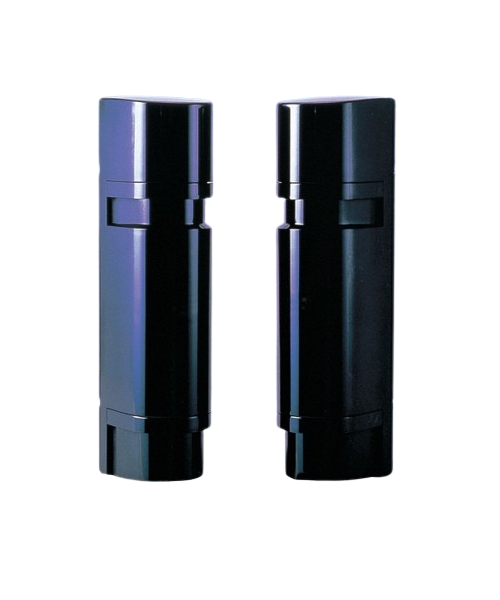

Photoelectric Beam Sensor Outdoor TAKEX PB-100F
- 4 Synchronized High Power Infrared [Patented]
+ 4 beams are 'and-gated', which helps to prevent false alarms by falling leaves and small animals.
+ Active infrared transmission is exceptionally strong with a maximum arrival distance ten times greater than the specified protection distance.
+ External light compensation circuit provides excellent tolerance to sun light, automobile head lights, fluorescent light or mercury light.
- Easy Beam Alignment
+ Audible signal for alignment: Alignment tone aids in quick set-up of beams. The tone becomes maximum at the peak beam level.
+ Sensitivity attenuation LED lights when beam is attenuated, which shows low sensitivity.
+ Monitor jack output.
+ Target color.
+ Wide adjustment (horizontally ±90°,vertically ±10°).
- RoHS Certified Complia
+ Environment friendly. Free from Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyls, Polybrominated diphenyl ethers.
- Auto-Gain Lock
+ Optimal sensitivity gain is automatically set at any coverage distance within the maximum protection distance. Auto-Gain lock is easily confirmed with sound check.
- Programmed Agc
+ Sensitivity is automatically increased in bad weather to cope with fog, heavy rain, frost or snow.
- Alarm Memory
+ Alarm memory LED located on receiver can be automatically reset.
- Protection Against Frost/Dew
+ Special hoods attached on sensor cover keep beam protection continuing without interruption even when the cover is screened by frost or dew.
- Other Features
+ Tamper output (transmitter and receiver).
+ Polycarbonate cover excellent at anti-shock.
+ Optional accessories.
Thông số kỹ thuật
| Model | PB-100F |
| Detection system | Near infrared beam interruption system (4 beam simultaneous interruption) |
| Infrared beam | Double modulation pulsed beams by LED |
| Protection distance | outdoor 330’(100m) or less |
| Max. arrival distance | 3300’ (1000m) |
| Response time | 50msec. to 700msec. variable (Standard : 50msec.) |
| Power supply | 12V to 30V DC (non-polarity) |
| Current consumption | 70mA or less at protection (max.105mA or less) |
| Alarm output | Dry contact relay: NO or NC (selectable) Reset: Interruption time + off-delay (approx.1.5sec) Contact capacity: 30V (AC/DC) 1A or less |
| Tamper output | Dry contact: NC Contact operation: Output when cover is detached Contact capacity : 30V (AC/DC) 0.1A or less |
| Alarm LED | Red LED (receiver) lights when an alarm is initiated |
| Sensitivity attenuation LED | Red LED (receiver) lights when beam reception attenuated |
| Functions | Tone indicator, Alarm memory indication, Programmed AGC, Auto-gain lock, Monitor jack, Target color |
| Beam adjustment | Horizontal : ±90°, Vertical : ±10° |
| Ambient temperature range | -31°F to +151°F (-35°C to +66°C) |
| Mounting position | Outdoor (IP55) |
| Wiring | Terminals |
| Weight | Transmitter : 42oz (1,200g) Receiver : 45.5oz (1,300g) |
| Appearance | Resin (wine red) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
