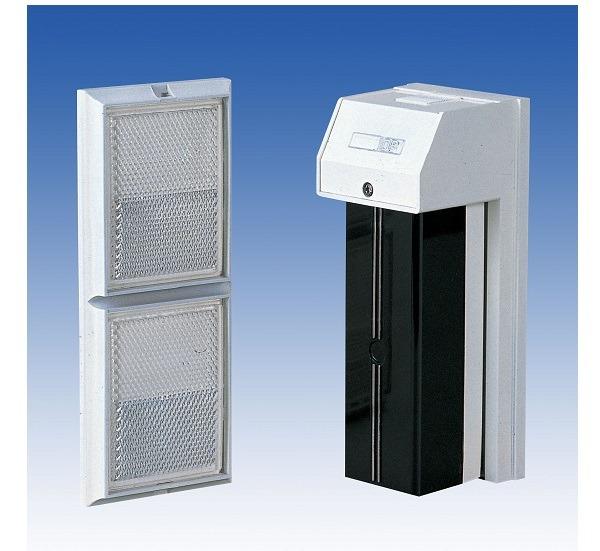

Photoelectric Beam Sensor TAKEX PR-10B(E)
- Rotary Optical System: Beam direction can be rotated a full 180 degrees for installation adaptation.
- Easy Maintenance: Operation LED(red) and SA(Self-Adjustment) mechanism yield quick operation check and ensure good beam alignment.
- High Sensitivity To Reflected Beam: Receiver incorporates a differential calculus detection system which precisely 'locks on' to the incoming reflected beam.
- Easy Installation: Wire is run to the transmitter only. The reflector allows up to a 40 degrees (+/-20 degrees) angle varience in beam reception / reflection which makes installation very 'forgiving' and can aid in situations where it is neary impossible for the beam to reflect off the mirror 'dead center'.
- Others
+ Alien-light rejection circuit.
+ 'L' bracket available for reflector (option).
Specification
| Prouduct name | Photoelectric beam sensor |
| Model | PR-10B(E) |
| Protection distance | 33' (10m) |
| Infrared beam | RED Wave length: 9400A, Modulation: 500Hz |
| Response time | 50-100 msec. or more |
| Alarm signal | Dry contactrelay output 1b (N/C) Contact capacity: 30V (AC/DC), 0.5A |
| Supply voltage | 10.5VDC to 15VDC (non-polarity) |
| Power consumption | 30mA (at 12VDC) |
| Ambient temperature range | -13F to +131F (-25C to +55C) |
| Mounting position | Indoor (entrance, corridor) |
| Wiring | Terminal |
| Weight | 7.7 oz (220g) |
| Appearance | ABS resin (white) |
- Bảo hành: 12 tháng.
