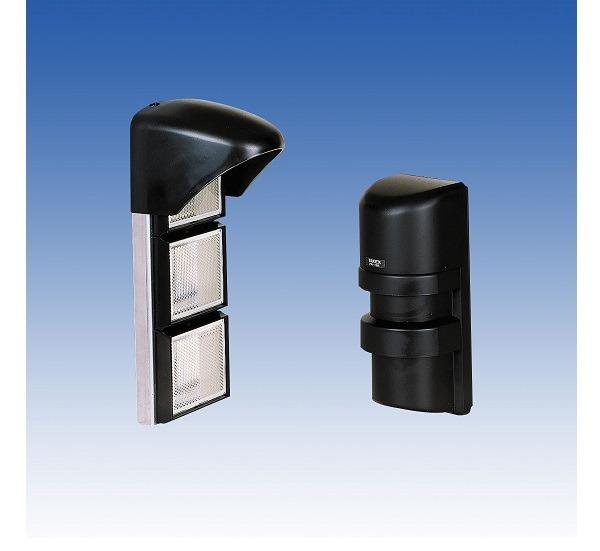

Photoelectric Beam Sensor TAKEX PR-11BE

Photoelectric Beam Sensor TAKEX PR-11BE

  • MS 000003245
  • TAKEX
Giá : Liên hệ

Photoelectric Beam Sensor TAKEX PR-11BE

- The newly developed PR-11BE is suitable for both indoor and outdoor use. This beam is the first reflector beam the security industry has ever developed for outdoor applications.

Feature

- Easy Installation: As wiring is needed only on the sensor unit, you can use it in places where it is difficult to wire on two sides. One side wiring makes it possible to save time and cost of installation.

- Both Indoor And Outdoor Use Is Available: This sensor can be used both inside and outside. 2 types of attenuation sheets (for indoor and outdoor) are attached.

- Easy Beam Alignment: Beam alignment can be adjusted at the sensor side only. When adjusting beam alignment, utilize view finder, attached attenuation sheets and alarm LED.

- External Light Protection: Trouble-free condition in 50,000 lux illumination fluctuation is assured by external light compensation circuit and filter, specially designed, that cuts visible rays effectively. Excellent tolerance against sun light, automobile head light, fluorescent light or mercury light.

- Rotary Optical System: Using the adjustments, the lens can move horizontally (+/-90 degrees) and vertically (+/-10 degrees) allowing the unit to work in all directions.

- Response Time Adjustment: Response time can be adjusted by the response time adjustment potentiometer.

- Easy Operation Check: Alarm LED (red) yield quick operation check.

- Option Accessories

   + L bracket fittings (BL-11) are available for reflector mounting.

   + BP-60A pole attachment is available for sensor and reflector.

- Optional Power Supply

   + A solar power kit is an available option.

   + Contact your local TAKEX office or distributor for part numbers and technical advice.

Specification

Product namePHOTO ELECTRIC BEAM SENSOR
ModelPR-11BE
Detection systemNear infrared beam interruption system. (reflective)
Protection distanceOutdoor 3.3 to 36' (1 to 11m)
Indoor 3.3 to 49' (1 to 15m)
Supply voltage10.5V to 30V DC (Non-polarity)
Current consumption55mA or less
Alarm outputDry contact relay from N/O-N/C
Contact capacity: 30V (AC/DC) 0.5A or less
Relay operation: Interruption time (minimum 2 seconds)
Tamper outputDry contact relay 1b (N/C)
Action: Activated when cover is detached.
Contact capacity: 30V (AC/DC) 0.5A or less
Response time0.05sec to 0.7sec. (Adjustable by potentiometer)
Alarm LEDRed LED
ON: when an alarm is initiated
Attenuation LEDRed LED
ON: when beam is attenuated.
FunctionsMonitor output
Ambient temperature range-13F to +140F (-25C to +60C)
Mounting positionsOutdoor/Indoor
WiringTerminals
WeightSensor: 15oz (430g) Reflector: 17oz (490g)
AppearanceSensor: PC resin (wine red)
Reflector: acrylic resin (clear), AES resin (black)

- Bảo hành: 12 tháng.
