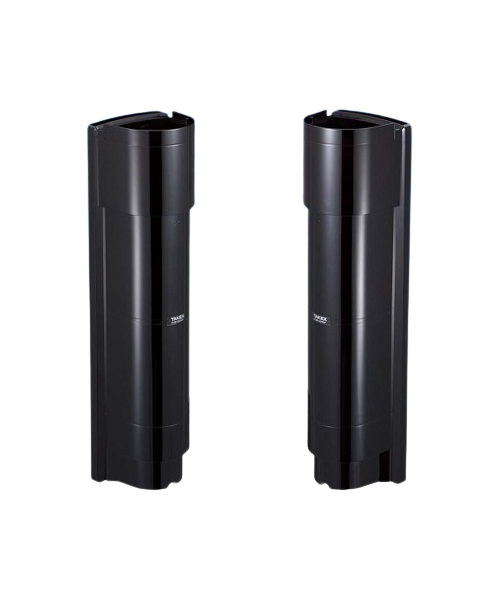

Photoelectric Beam Sensor TAKEX PXB-100SW
- Our ultra low-current PXB-100SW is designed to be powered by BA-6SLA solar panel and power units for wireless or remote applications without cabling infrastructure.
Features
- 4 x synchronised high power beams.
- Low-current consumption for battery or solar operation.
- 4 selectable beam channels to prevent crosstalk.
- Double modulation for unsurpassed light immunity.
- Increased beam separation minimises nuisance alarms.
- Vivid internal colour aids beam alignment procedure.
- Lightning and surge protection up to 15kV.
- Environmental monitoring circuit.
- Dynamic auto-gain lock (AGL).
- 50,000 lux sunlight immunity.
- IP65 housing.
- Optional BA-6SLA solar panel/battery pack available.
Specifications
| Model | PXB-100SW |
| Product type | Photoelectric Beam Sensor |
| Detection system | Near infrared pulsed beam interruption system (TX-RX 4 beam simultaneous interruption) |
| Infrared beam | Double modulation pulsed beam by LED |
| Protection distance | Outdoor 100m (330ft) or less Indoor 200m (660ft) or less |
| Max. beam range | Outdoor 1000m (3300ft) or less Indoor 1000m (3300ft) or less |
| Response time | 0.05 sec. to 0.7 sec. (Variable at pot) |
| Power supply | 5 to 30VDC (polarity) |
| Current consumption | 5 to 8VDC - Transmitter: + Max: 3.7mA + Max 8.2mA - Receiver: + Max: 2.3mA + Max 10mA 10 to 30VDC - Transmitter: + Max: 5.2mA + Max 9.4mA - Receiver: + Max: 3.1mA + Max 10.7mA |
| Alarm output | - Dry contact relay output form N.O./N.C switchable - Contact action : Interruption time (min. 2 sec) - Contact capacity : 30V (AC/DC) 1A (resistive load) Protective resistor |
| Environmental output | - Dry contact relay output form N.O./N.C. switchable - Action: activated when weather condition worsens - Capacity: 30V (AC/DC) 1A (resistive load) Protective resistor |
| Tamper output | - Dry contact relay (N.C.) - Action: activated when cover is detached - Capacity: 30V (AC/DC) 0.1A (resistive load) Protective resistor |
| Alarm LED | Red LED (Receiver) ON: when an alarm is initiated |
| Attenuation LED | Red LED (Receiver) ON: when beam is attenuated |
| Ambient temperature range | -35°C to +66°C (-31°F to +151°F) |
| Beam Adjustment | Horizontal : ±90° / Vertical : ±20° |
| Functions | - Modulated beam frequency selection - Tone indicator - Environmental module - Beam power selection - Transmitting power adjustment - Alarm output selection - Environmental output selection - Monitor jack - Tamper - Response time adjustment - Upper / Lower beam switch - Wireless Checker |
| Mounting positions | Outdoor, Indoor |
| IP rating | IP65 |
| Wiring | Terminals |
| Weight | Transmitter: 1500g (52.5oz) Receiver: 1550g (54.3oz) |
| Appearance | PC resin (wine red) |
- Bảo hành: 12 tháng.
