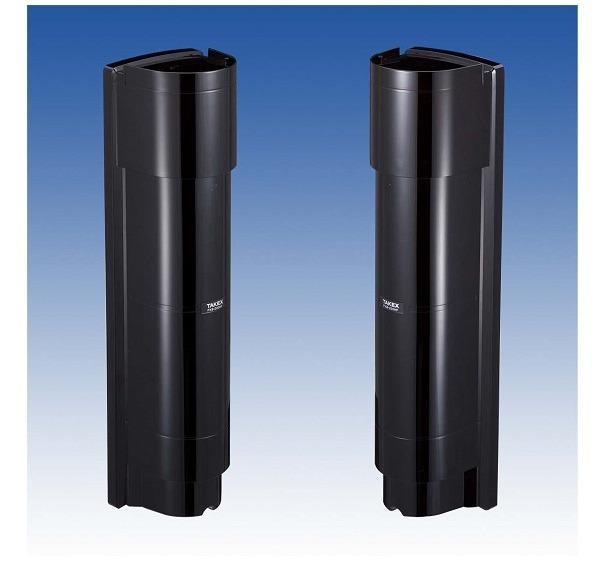

Photoelectric Beam Sensor TAKEX PXB-100ATC
- Upper and lower beams individually detect objects.
- The alarm output can be selected OR-gate (blocking either upper or lower beam) or AND-gate (blocking both upper or lower beam) according as a site.
Feature
- Anti-Crawl Detection: Upper and lower beam individually detects the objects and issues a signal only by blocking each beam.
- At . Hf Separate Output
+ AT output: OR-gated by upper and lower beam.
+ HF output: AND-gated.
- Synchronized High Power Beam: By synchronizing the timing of transmitting and receiving beam, the stacking system will be more reliable.
- Double Modulation
+ Double modulated beams are designed to distinguish the true beam signal from accidental or deliberate interference from sunlight, car headlights and other artificial light sources.
+ This increases the reliability in the outdoor security system.
- Quad High Power Beam
+ The beam power is 100 times of the minimum requirement.
+ The beam distance is 10 times of the described specification.
+ This high power beam also realizes the reliability against the harsh conditions like fog, snow, heavy rain.
- Ecology: RoHS adapted - Environment friendly. Free from Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyl, Polybrominated diphenyl ether.
- Insect/Water Prevent: IP65 rated, with anti-insect bushing and special wading.
- Anti-Bird Spike: Keeps birds and small animals away from the sensor, helping to reduce false alarms.
- Drip-Proof Housing: Prevents rain and snow from streaming down the front side of housing, helping to avoid false alarm.
- Dual Ring Sight: Enables better and clear view for easy beam alignment.
- Target Color
+ The vivid color of the internal structure can be recognized easily from the far end in the beam alignment procedure.
+ The color differs between a transmitter and a receiver which helps easy installation and checking.
- Increased Range Adjustment Allowance
+ Vertically ±20°compared with previous version.
+ It may adapt to the slope installation flexibly.
- Wireless Alignment Checker: Enables easy and accurate beam alignment.(Sold separately).
- Lightning Protection
+ Minimizes the damage caused by induced lightning through wiring.
+ Rated up to 10,000V under normal mode and 15,000V under common mode.
Specification
| Model | PXB-100ATC |
| Detection system | Near infrared pulsed beam interruption system (Anti-crawling, Anti-corrosion) |
| Infrared beam | Double modulation pulsed beam by LED |
| Protection distance | Outdoor 330' (100m) or less |
| Response time | AT output : 0.05sec by upper/lower level simultaneous interruption 0.1/0.2/0.3/0.5sec by either level interruption HF output : 0.05sec by upper/lower level simultaneous interruption |
| Power supply | 12 to 30V DC (Non-polarity) |
| Current consumption | Transmitter: 27mA Receiver: 48mA |
| Alarm output | Dry contact relay output N.O./N.C. selectable Contact action: Interruption time (Min.2sec.) Contact capacity: 30V (AC/DC) 0.25A (resistive load) Protective resistor |
| Environmental output | Dry contact relay output N.O./N.C. selectable Action: Activated when weather condition gets worse (Min.5sec.) Contact capacity: 30V (AC/DC) 0.25A (resistive load) Protective resistor |
| Tamper output | Dry contact (N.C.) Action: Activated when cover is detached Contact capacity: 30V (AC/DC) 0.1A (resistive load) Protective resistor |
| Alarm LED | Red LED (Receiver) ON: when an alarm is initiated |
| Attenuation LED | Red LED (Receiver) ON: when beam is attenuated |
| Ambient temperature range | -31ﾟF to +151ﾟF(-35 to +66℃) |
| Beam adjustment | Horizontal: ±90°, Vertical: ± 20° |
| Functions | Modulated beam frequency selection,Tone indicator, Environmental module, Beam power selection, Transmitting power adjutment, Programmed AGC, Auto-gain lock function, Monitor Jack, Tamper, Response time adjustment, Upper/lower beam switch Wireless checker |
| Mounting positions | Outdoor, Indoor |
| IP rating | 65 |
| Wiring | Terminals |
| Weight | Transmitter : 49oz (1,400g) Receiver : 52.5oz (1,500g) |
| Appearance | PC resin (wine red) |
- Bảo hành: 12 tháng.
