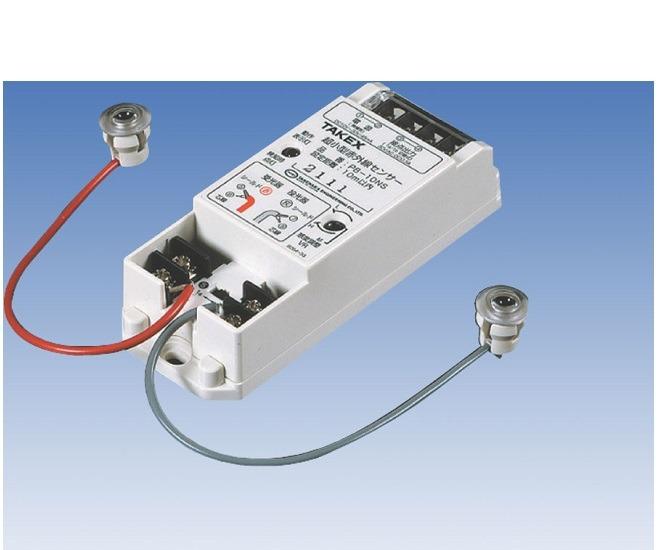

Photoelectric Single Beam Sensor TAKEX PB-10NS(E)
PB-10NS(E) Single beam TR/RE type 33ft (10m).
- Description
+ Miniaturized Photoelectric Beam Sensor is suitable for use inconspicuously in a wide range of applications.
(for CD/ATM machine, motor-driven shutter, window or alley.)
- Miniaturized Control Box
+ Miniaturized control box [W:1.77'(45mm) × H:4.72'(120mm) × D:1.14'(29mm)] does not use much space for installation.
- Easy Installation
+ For sensor head, make a preliminary hole and push it only to be installed.
- Built-In Sensitivity Control
+ Adjustable to the optimal sensitivity as the installation site demands.
- Sensor Cord Can Be Cut To Length
+ Both of transmitter cord and receiver cord can be cut as the installation site requires.
+ No need to bundle the extra cord.
Thông số kỹ thuật
| Model | PB-10NS(E) |
| Detection system | Near infrared TR/RE type |
| Protection distance | 33ft. (10m) or less |
| Supply voltage | DC10V to DC30V (Non-polarity) |
| Current consumption | 45mA or less |
| Alarm output | Dry contact relay: 30V (AC/DC) 0.3A N/O, N/C selectable Contact action: Interruption time＋Delay time (approx. 1 sec.) |
| Response time | Detect 100msec. or more of beam interruption |
| Operation LED | Lights Red during detection (beam is interrupted) |
| Ambient temperature range | -13F to +131F (-25C to +55C) (without condensation or frozen) |
| Appearance | Sensor: PC resin (clear) Control box: ABS resin (white) |
| Weight | Sensor: 4.2oz (120g) × 2 Control box: 3.3oz (95g) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
