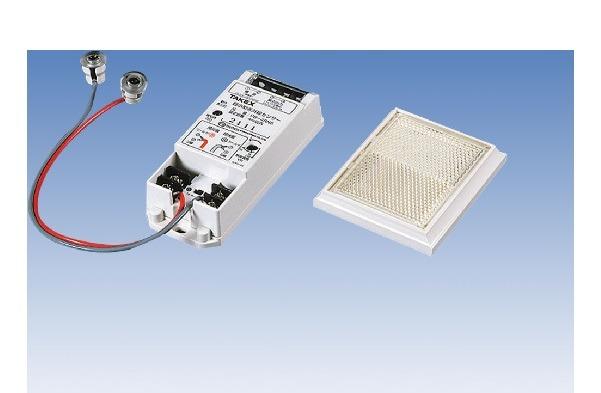

Photoelectric Single Beam Sensor TAKEX PB-4RNS(E)

Photoelectric Single Beam Sensor TAKEX PB-4RNS(E)

  • MS 0015246
  • TAKEX
Giá : 2,041,000 vnđ (Đã bao gồm VAT)

Photoelectric Single Beam Sensor TAKEX PB-4RNS(E)

Photoelectric Single Beam Sensor TAKEX PB-4RNS(E)

- PB-4RNS(E) Single beam reflective type 13ft (4m).

- Description

   + Miniaturized Photoelectric Beam Sensor is suitable for use inconspicuously in a wide range of applications.

(for CD/ATM machine, motor-driven shutter, window or alley.)

- Miniaturized Control Box

   + Miniaturized control box [W:1.77'(45mm) × H:4.72'(120mm) × D:1.14'(29mm)] does not use much space for installation.

- Easy Installation

   + For sensor head, make a preliminary hole and push it only to be installed.

- Built-In Sensitivity Control

   + Adjustable to the optimal sensitivity as the installation site demands.

- Sensor Cord Can Be Cut To Length

   + Both of transmitter cord and receiver cord can be cut as the installation site requires.

   + No need to bundle the extra cord.

Thông số kỹ thuật

ModelPB-4RNS(E)
Detection systemNear infrared reflective type
Protection distance13ft. (4m) or less
Supply voltageDC10V to DC30V (Non-polarity)
Current consumption45mA or less
Alarm outputDry contact relay: 30V (AC/DC) 0.3A
N/O, N/C selectable
Contact action: Interruption time+Delay time (approx. 1 sec.)
Response timeDetect 100msec. or more of beam interruption
Operation LEDLights Red during detection (beam is interrupted)
Ambient temperature range-13F to +131F (-25C to +55C) (without condensation or frozen)
AppearanceSensor : PC resin (clear)
Control box : ABS resin (white)
WeightSensor : 4.2oz (120g) × 2
Control box : 3.3oz (95g)

- Xuất xứ: Nhật Bản.

- Bảo hành: 18 tháng.
