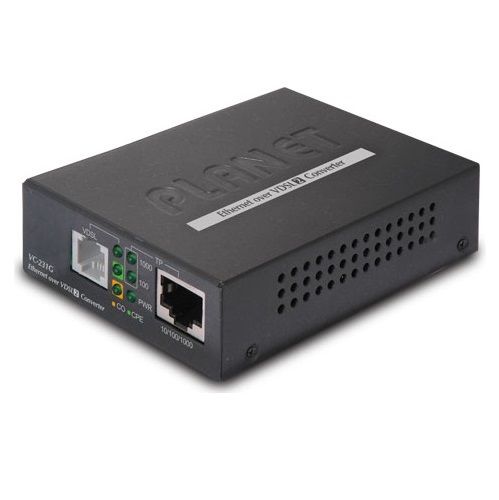

1-Port 10/100/1000T Ethernet to VDSL2 Converter PLANET VC-231G

PLANET VC-231G

  • MS 0017643
  • PLANET
Giá : Liên hệ

1-Port 10/100/1000T Ethernet to VDSL2 Converter PLANET VC-231G

1-Port 10/100/1000T Ethernet to VDSL2 Converter PLANET VC-231G

- ITU-T G.993.5 G.vectoring and G.INP.

- DMT-based coding technology.

- Additional splitter to share voice and data.

- CO/CPE mode selectable via DIP switch.

- Selectable target band plan and SNR margin.

- Up to 150/150Mbps bandwidth (in G.INP, Sym, 8dB mode).

- 1 10/100/1000BASE-TX LAN ports.

- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX and IEEE 802.3x, flow control Ethernet standards.

- Half duplex back pressure and IEEE 802.3x full duplex pause frame flow control.

- One RJ11 connector for VDSL port with VDSL connection.

- Voice and data communication can be shared simultaneously based on the existing telephone wire.

- Supports IEEE 802.1Q VLAN tag transparency.

- VDSL2 standalone transceiver for simple bridge modem application.

- Advantage of minimum installation time (Simply by Plug-and-Play).

- Supports extensive LED indicators for network diagnosis.

- Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48).

- Compact in size and easy to install.

Đặc tính kỹ thuật

Hardware Specifications
LAN Ports1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL Port1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
Phone PortAdditional splitter for POTS connection
Dimensions (W x D x H)97 x 70 x 26 mm
Weight184g
Power RequirementsDC 5V, 2A external power
LED Indicators1 power: Green
1 1000BASE-T LNK/ACT: Green
1 100BASE-TX LNK/ACK: Green
1 VDSL:Green
1 CO: Green
1 CPE: Green
HousingMetal
DIP Switch & Functionality4-position DIP switch
CO or CPE mode selectable
Selectable G.INP and interleaved mode
Selectable target Band plan
Selectable target SNR mode
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table2K entries
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Maximum Packet Size1522bytes
System Specifications
VDSL ComplianceVDSL-DMT:
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.vectoring
ITU-T G.998
G.INP
ADSL ComplianceCapable of ADSL2/2+ standard:
- ITU G.992.3 G.dmt.bis
- ITU G.992.5 G.dmt.bisplus
Data Rate: Up to 24Mbp
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998
Environment
TemperatureOperating: 0~50 degrees C
Storage: -10~70 degrees C
HumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

- Bảo hành: 24 tháng.
