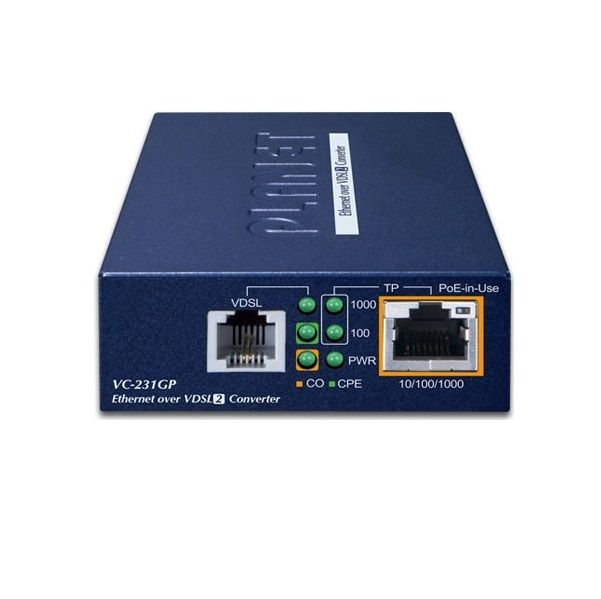

1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter PLANET VC-231GP

PLANET VC-231GP

  • MS 0017644
  • PLANET
Giá : Liên hệ

1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter PLANET VC-231GP

1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter PLANET VC-231GP

- Support 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af/802.3at PoE Injector.

- Support 1 RJ11, connector for xDSL port with VDSL2 or ADSL2+ connection.

Power over Ethernet

- Complies with IEEE 802.3at/af PoE Plus end-span PSE

- Supports PoE power up to 30.8 watts per PoE port

- Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port

- Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation

- Remote power feeding up to 100m

- IEEE 802.3at/af splitter devices compatible

VDSL2 Features

- VDSL2 stand-alone transceiver for simple bridge modem application

- Cost-effective bridge function to connect two Ethernet LANs

- Point-to-multipoint application: Compatible with PLANET and third-party VDSL2 IP DSLAM for last-mile solution

- Point-to-point application: LAN to LAN extension over phone wire

- Up to 150/150Mbps bandwidth (in G.INP, Sym, 8dB mode)

- Voice and data communication can be shared simultaneously based on the existing telephone wire with distance up to 1.4km

- ITU-T G.993.2 VDSL2 standard

- ITU-T G.993.5 G.Vectoring and G.INP

- DMT-based coding technology

- CO/CPE mode selectable via DIP switch

- Selectable target band plan (symmetric and asymmetric) and SNR margin

- Supports IEEE 802.1Q VLAN tag transparency

Hardware and Installation

- Compact size, wall-mountable design; ideal solution for space-limited locations

- Advantage of minimum installation time (Simply by Plug and Play)

- Metal case, good for heat sinking

- Supports extensive LED indicators for network diagnosis

- Additional POTS splitter to share voice and data

- Supports 6KV DC Ethernet ESD protection

Đặc tính kỹ thuật

Hardware Specifications
LAN Port1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
VDSL Port1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km
Phone PortAdditional splitter for POTS connection
DIP Switch & Functionality4-position DIP switch
- CO or CPE mode selectable
- Selectable G.INP and interleaved mode
- Selectable target Band plan
- Selectable target SNR mode
LED Indicators1 Power: Green
1 1000BASE-T LNK/ACT: Green
1 100BASE-TX LNK/ACK: Green
1 VDSL: Green
1 CO: Green
1 CPE: Green
1 PoE-in-use: Amber
ESD Protection6KV DC
EnclosureMetal
InstallationWall mount or DIN rail with optional kit
Dimensions (W x D x H)97 x 70 x 26 mm
Weight206g
Power RequirementsDC 54V, 0.74A external power
Power Consumption (VDSL2 + Ethernet + PoE)CO Mode: 32.4 watts/110BTU
CPE Mode : 32 watts/109BTU
Power Over Ethernet
PoE StandardIEEE 802.3at PoE+ PSE
PoE Power Output BudgetDC 52V, 30 watts
PoE Power Supply TypeEnd-span
Power PIN Assignment1/2(+), 3/6(-)
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table2K entries
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Maximum Packet Size1522 bytes
System Specifications
VDSL ComplianceVDSL-DMT
- ITU-T G.993.1 VDSL
- ITU-T G.997.1
- ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
- ITU-T G.993.5 G.Vectoring
- ITU-T G.998
- G.INP
ADSL ComplianceCapable of ADSL2/2+ standard
- ITU G.992.3 G.dmt.bis
- ITU G.992.5 G.dmt.bisplus
Data Rate: Up to 24Mbps
Performance* (Downstream/Upstream)- Interleave, Asym, 8dB
 200M ----> 190Mbps/90Mbps
 400M ----> 163Mbps/64Mbps
 600M ----> 110Mbps/34Mbps
 800M ----> 73Mbps/18Mbps
 1000M --> 49Mbps/10Mbps
 1200M --> 39Mbps/8Mbps
 1400M --> 25Mbps/6Mbps
- Interleave, Sym, 8dB
 200M ----> 149Mbps/141Mbps
 400M ----> 116Mbps/115Mbps
 600M ----> 72Mbps/70Mbps
 800M ----> 45Mbps/44Mbps
 1000M --> 26Mbps/16Mbps
 1200M --> 26Mbps/12Mbps
 1400M --> 29Mbps/12Mbps
- G.INP, Asym, 8dB
 200M ----> 192Mbps/93Mbps
 400M ----> 159Mbps/64Mbps
 600M ----> 106Mbps/37Mbps
 800M ----> 68Mbps/19Mbps
 1000M --> 49Mbps/8Mbps
 1200M --> 29Mbps/8Mbps
 1400M --> 26Mbps/6Mbps
- G.INP, Sym, 8dB
 200M ----> 150Mbps/150Mbps
 400M ----> 114Mbps/113Mbps
 600M ----> 69Mbps/69Mbps
 800M ----> 49Mbps/39Mbps
 1000M --> 27Mbps/24Mbps
 1200M --> 26Mbps/12Mbps
 1400M --> 21Mbps/11Mbps
- Interleave, Asym, 12dB
 200M ----> 177Mbps/83Mbps
 400M ----> 145Mbps/57Mbps
 600M ----> 92Mbps/31Mbps
 800M ----> 59Mbps/15Mbps
 1000M --> 44Mbps/10Mbps
 1200M --> 32Mbps/6Mbps
 1400M --> 22Mbps/3Mbps
- Interleave, Sym, 12dB
 200M ----> 136Mbps/129Mbps
 400M ----> 100Mbps/101Mbps
 600M ----> 58Mbps/57Mbps
 800M ----> 42Mbps/36Mbps
 1000M --> 23Mbps/12Mbps
 1200M --> 23Mbps/10Mbps
 1400M --> 17Mbps/11Mbps
- G.INP, Asym, 12dB
 200M ----> 177Mbps/85Mbps
 400M ----> 144Mbps/51Mbps
 600M ----> 87Mbps/29Mbps
 800M ----> 55Mbps/15Mbps
 1000M --> 40Mbps/8Mbps
 1200M --> 38Mbps/8Mbps
 1400M --> 26Mbps/4Mbps
- G.INP, Sym, 12dB
 200M ----> 136Mbps/133Mbps
 400M ----> 97Mbps/102Mbps
 600M ----> 54Mbps/56Mbps
 800M ----> 40Mbps/35Mbps
 1000M --> 24Mbps/22Mbps
 1200M --> 24Mbps/9Mbps
 1400M --> 18Mbps/12Mbps
Standards ConformanceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998
xDSL Compatibility
VDSL2VC-231G
VC-234G
VC-231
VC-234
VC-820M
VDR-301N
Environment
TemperatureOperating: 0~50 degrees C
Storage: -10~70 degrees C
HumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

- Bảo hành: 24 tháng.
