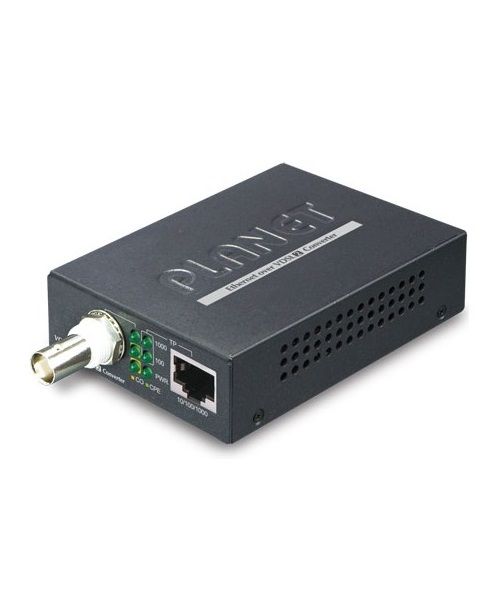

1-Port 10/100/1000T Ethernet over Coaxial Converter PLANET VC-232G

PLANET VC-232G

  • MS 0017645
  • PLANET
Giá : Liên hệ

1-Port 10/100/1000T Ethernet over Coaxial Converter PLANET VC-232G

1-Port 10/100/1000T Ethernet over Coaxial Converter PLANET VC-232G

- ITU-T G.993.5 G.Vectoring and G.INP.

- Upstream/Downstream bandwidth up to 200/100Mbps.

- CO/CPE mode selectable via DIP switch.

- Selectable target band plan and SNR margin.

- Half duplex back pressure and IEEE 802.3x full duplex pause frame flow control.

- One BNC connector for VDSL connection.

- Uses existing RG59/RG6 coaxial cable.

- Used in pairs to extend Point-to-Point connection up to 1.4km.

- Supports a packet size of up to 1522 bytes, IEEE 802.1Q VLAN tag transparency.

- Advantage of minimum installation time (Simply by Plug-and-Play).

- Supports extensive LED indicators for network diagnosis.

- Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48).

- Compact in size and easy to install.

Đặc tính kỹ thuật

Hardware Specifications
TP interface1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL Interface- 1 BNC female Ethernet over Coaxial
- Cabling
Coaxial cable: 75 ohm
RG-6/U cable, less than12Ω/1000 ft
RG-59/U cable, less than 30Ω/1000 ft.
- Maximum Distance
Max. 1400m with data transmission (4,593ft.)
FunctionalityDIP-1: Select CO or CPE mode
DIP-2: Select G.INP or Interleaved mode
DIP-3: Select Band Profile (Asymmetric or Symmetric)
DIP-4: Select SNR of 12dB or 8dB
Dimensions (W x D x H)70 x 97 x 26 mm
Weight185g
Power RequirementDC 5V, 2A external power
LED IndicatorsPower: Green
1000BASE-T LNK/ACT: Green
VDSL: Green
CO: Green
CPE: Green
HousingMetal
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table2K entries
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
System Specifications
VDSL ComplianceVDSL-DMT
 ITU-T G.993.1 VDSL
 ITU-T G.993.1 VDSL
 ITU-T G.997.1
 ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
 ITU-T G.993.5 G. Vectoring
 ITU-T G.998
 G.INP
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
ITU-T G.993.5 G.Vectoring and G.INP
ITU-T G.998
Regulatory ComplianceFCC Part 15 Class A, CE
Performance
Coaxial PerformanceInterleave(Upstream/Downstream: Mbps)
 Asymmetric (8dB):
 200m ->88Mbps/168Mbps
 400m ->75Mbps/160Mbps
 600m ->59Mbps/129Mbps
 800m ->32Mbps/110Mbps
 Asymmetric (12dB):
 200m ->78Mbps/145Mbps
 400m ->69Mbps/137Mbps
 600m ->48Mbps/118Mbps
 800m ->26Mbps/94Mbps
 Symmetric (8dB):
 200m ->129Mbps/131Mbps
 400m ->117Mbps/122Mbps
 600m ->101Mbps/92Mbps
 800m ->62Mbps/73Mbps
 Symmetric (12dB):
 200m ->117Mbps/123Mbps
 400m ->102Mbps/102Mbps
 600m ->88Mbps/82Mbps
 800m ->47Mbps/56Mbps
G.INP(Upstream/Downstream: Mbps)
 Asymmetric (8dB):
 200m ->95Mbps/200Mbps
 400m ->82Mbps/175Mbps
 600m ->59Mbps/151Mbps
 800m ->37Mbps/122Mbps
 Asymmetric (12dB):
 200m ->89Mbps/181Mbps
 400m ->71Mbps/156Mbps
 600m ->46Mbps/136Mbps
 800m ->30Mbps/102Mbps
 Symmetric (8dB):
 200m ->147Mbps/147Mbps
 400m ->132Mbps/135Mbps
 600m ->108Mbps/104Mbps
 800m ->76Mbps/78Mbps
 Symmetric (12dB):
 200m ->138Mbps/143Mbps
 400m ->116Mbps/120Mbps
 600m ->91Mbps/89Mbps
 800m ->58Mbps/60Mbps
Environment
TemperatureOperating: 0~50 degrees C
Storage: -10~70 degrees C
HumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

- Bảo hành: 24 tháng.
