Mains power supply

Voltage

230 VAC ±10%, 50/60 Hz

Inrush current

10A

Power consumption

400 VA

Performance

Frequency response (Line)

60 Hz to 20 KHz (+1/‑3 dB @ ‑10 dB ref. rated output)

Frequency response (Mic.)

70 Hz to 20 KHz (+1/‑3 dB @ ‑10 dB ref. rated output)

Distortion

<1% @ rated output power, 1KHz

Bass Control

Max. ± 8 dB

Treble Control

Max. ± 8 dB

Mic./Line input

4 x

Input 1 (push-to-talk contact with priority)

5‑pin Euro style, balanced, phantom

Input 2

3‑pin Euro style, balanced, phantom

Input 3 and 4

TRS Jack (1/4, 6.3mm) balanced

Sensitivity

1 mV (mic.); 300 mV (line)

Impedance

>1 KΩ (mic.); >5 KΩ (line)

Dynamic range

93 dB

S/N (flat at max volume)

>63 dB (mic.); >70 dB (line)

S/N (flat at min volume/ muted)

>75 dB

CMRR (mic.)

>40 dB (50 Hz to 20 KHz)

Headroom

>25 dB

Speech filter

-3 dB @ 315 Hz, high-pass, 6 dB/oct

Phantom power supply

16 V via 1.2 KΩ (mic.)

Music input

Connector

Cinch, stereo converted to mono

Sensitivity

200 mV

Impedance

22KΩ

S/N (flat at max volume)

>75 dB

S/N (flat at min volume/ muted)

>80 dB

Headroom

>25 dB

Loudspeaker output

Connector

Screw terminal, floating

Max / rated

180 W / 120 W

Loudspeaker output 4Ω

Connector

Screw terminal, floating

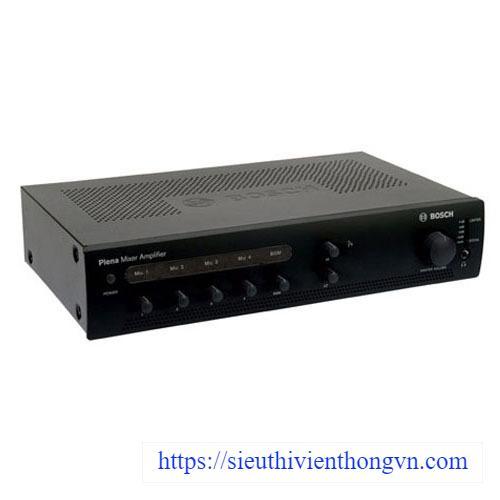

PLE-1ME120-EU

22 V (120 W)

Mechanical

Mounting

Stand-alone, 19 inch rack

Color

Charcoal

Dimensions

100 x 430 x 270 mm

Weight

8.9 kg
