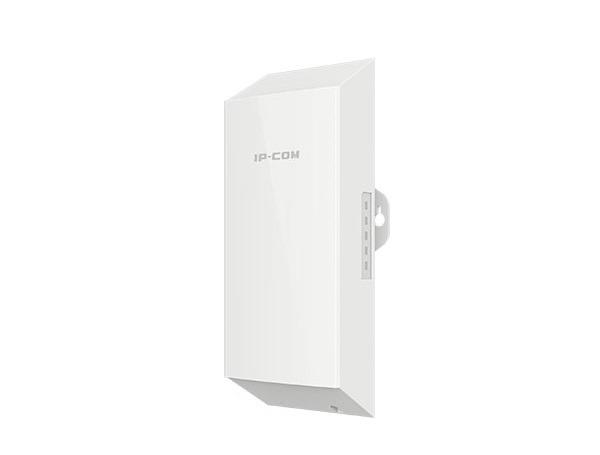

Point to Point Outdoor CPE IP-COM CPE6
- Point to Point Outdoor CPE IP-COM CPE6 là thiết bị phát sóng Wifi ngoài trời khoảng cách xa.
- Băng tần: 5Ghz.
- Tốc độ: 300Mbps.
- Khoảng cách kết nối: 2km.
- Chuẩn: IEEE 802.11a/n.
- Antenna: 12dBi định hướng.
- Ứng dụng: CCTV Surveillance, WISP.
- Tiêu chuẩn chống nước: IP65.
- Kích thước: 193.5 x 80 x 67.5 mm.
Đặc tính kỹ thuật
| Model | CPE6 |
| Product Information | |
| Dimensions | 193.5x80x67.5mm |
| Deployment | Pole Mount |
| Application Scenarios | WISP CPE, Data transmission and Long range video surveillance |
| Hardware Features | |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n |
| Private TDMA Protocol | IMAX |
| Maximum Wireless Rate | 300Mbps |
| Interfaces | 1x10/100Mbps Ethernet Port |
| Antennas Gain | 12dbi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° |
| Reset Button | 1 |
| DC Jack | 1 |
| Power Consumption | 6.3W |
| Waterproof Level | IP65 |
| LED indicator | PoE/LAN,WiFi LED1,LED2,LED3 |
| Power Method | 12V1A Passive PoE or DC Adapter |
| Lightning Protection | 6000V Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) Voltage range: 11-13.8V DC |
| Receiver sensitivity | MCS0: -96dbm MCS7: -72dbm |
| Software Features | |
| Operating mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth | 10/20/30/40MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software -- CPE Controller |
| Others | |
| Package Contents | 1x2km Point to Point Outdoor CPE 1xPower Adapter 1xPoE Injector 2xPlastic Staps 1xQuick Installation Guide |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | Admin |
| Default Login Password | Admin |
| Certifications | FCC/CE/RoHS |
- Bảo hành: 24 tháng.
