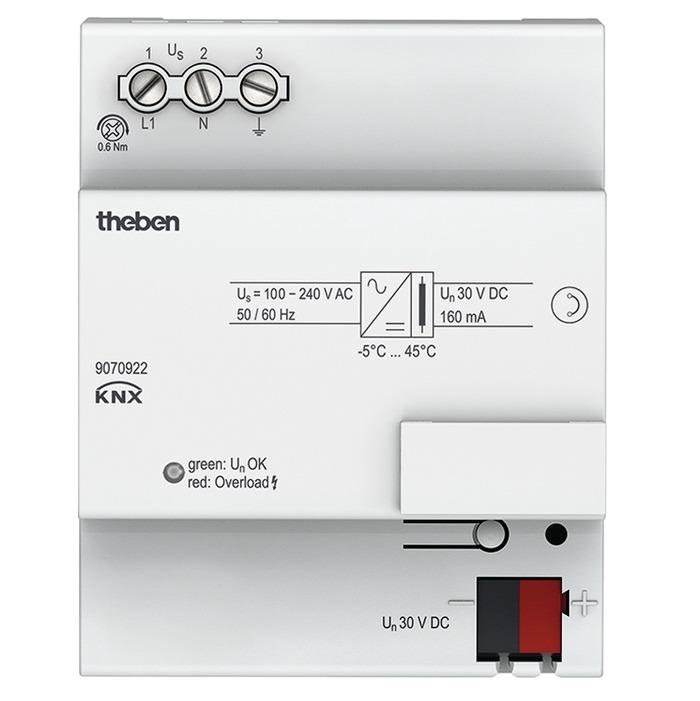

Power supply THEBEN 160 mA KNX

Power supply THEBEN 160 mA KNX

Giá : 9,009,000 vnđ (Đã bao gồm VAT)

Power supply THEBEN 160 mA KNX

Power supply THEBEN 160 mA KNX

- Power-supplying and monitoring of the KNX system voltage.

- Reset key for 20 sec. bus reset.

- Continuous short-circuit protection.

Specifications

Model160 mA S KNX
Operating voltage KNXBus voltage, ≤12 mA
Operating voltage100 – 240 VAC
Frequency50 – 60 Hz
Stand-by consumption≤0,7 W
Width4 modules
Installation typeDIN rail
Type of connectionKNX bus terminal
KNX output1 line with integrated throttle drive
Nominal voltage KNX30 V DC, ± 2 V, SELV
Nominal current KNX160 mA
Uninterrupted short-circuit currentmax.0,5 A
Mains failure bridging timemin.200 ms
Ambient temperature-5°C … +45°C
Protection classII according to EN 60 730-1
Type of protectionIP20

- Hãng sản xuất THEBEN của Đức.

- Bảo hành: 12 tháng.
