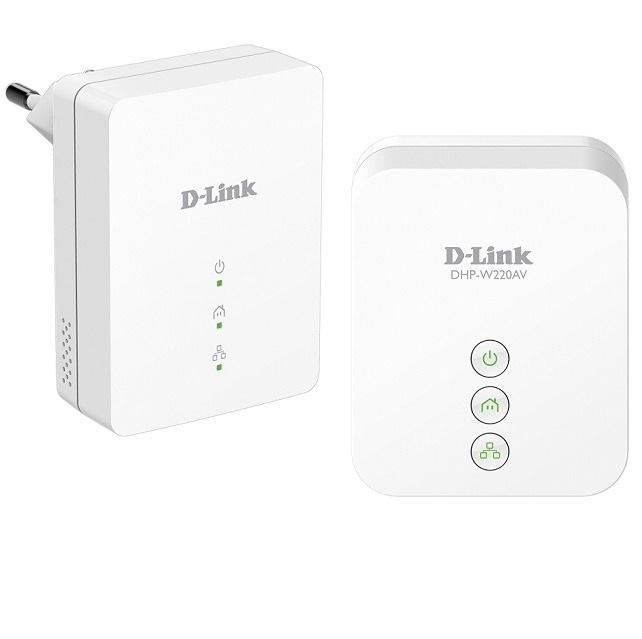

Powerline AV 2-in-1 WiFi Starter Kit D-Link DHP-W221AV/LEU
- Powerline AV 2-in-1 WiFi Starter Kit (including DHP-208AV (wired) & DHP-W220AV (wireless)).
DHP-208AV
- Powerline AV Mini Adapter (200Mbps over Electrical Wires, 1-port 10/100Mbps, 128-bit AES Data Encryption, Simple Connect Button, Zero Configuration, Integrated QoS, Power Saving Mode, 2-Flat-Pin).
DHP-W220AV
- Wireless N150 Powerline AV Mini Extender (200Mbps over Electrical Wires, 150Mbs WiFi, 2-port 10/100Mbps, 128-bit AES Data Encryption, Simple Connect Button, Zero Configuration, Integrated QoS, Power Saving Mode, 2-Flat-Pin)
Specifications
| DHP-208AV | |
| Powerline Interface | Power plug (country-dependent) |
| Ethernet Interface | 10/100 Fast Ethernet port with RJ-45 connector |
| Standards | IEEE1901 Homeplug AV |
| Security | 128-bit AES data encryption |
| LEDs | Power Ethernet Powerline |
| Powerline Modulation Scheme | OFDM symbol modulation |
| Powerline Frequency Band | 2 to 30 MHz |
| Data Rate | Powerline: Up to 200 Mbps (PHY rate) Ethernet: 10/100 Mbps (autonegotiation) |
| DHP-W220AV | |
| Powerline Interface | One PLC interface compatible with HomePlug AV specification up to 200 Mbps |
| Ethernet Interfaces | Two 10/100 Mbps Fast Ethernet LAN ports Wireless N |
| Antennas | One internal antenna |
| Standards | IEEE 802.11n IEEE 802.11g IEEE 802.11b IEEE 802.3u IEEE 1901 HomePlug AV |
| Security | 128-bit AES data encryption WEP / WPA / WPA2 |
| LEDs | Power LAN Powerline |
| Wireless Frequency Range | 2400 to 2497 MHz ISM band |
| Data Rate | Ethernet: 10/100 Mbps (auto negotiation) WLAN: Up to 150 Mbps Powerline: Up to 200 Mbps |
- Bảo hành: 12 tháng.
