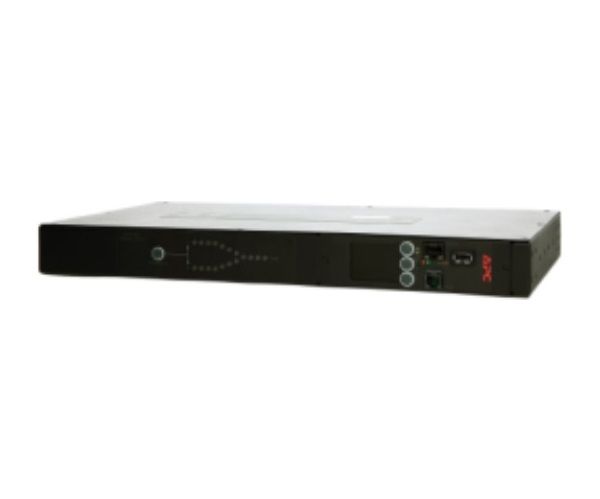

Rack ATS APC AP4423
- Rack ATS, 230V, 16A, C20 IN, (8) C13 (1) C19 OUT.
- Main Input Voltage: 230V.
- Main Output Voltage: 230V.
- Input Connection Type: IEC 60320 C20.
- Number of rack unit: 1U.
- Provided equipment: Mounting hardware; Rack mounting brackets; Serial configuration cable.
Thông số kỹ thuật
| Main | |
| Main Input Voltage | 230V |
| Main Output Voltage | 230V |
| Input Connection Type | IEC 60320 C20 |
| Number of rack unit | 1U |
| Provided equipment | Mounting hardware Rack mounting brackets Serial configuration cable |
| Physical | |
| Colour | Black |
| Dimension (H x W x D) | 4.4 x 43.2 x 23.6 cm |
| Weight | 3.74kg |
| Mounting location | Front Rear |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Input | |
| Network frequency | 50/60 Hz |
| Max line current | 20A |
| Input current limits | 20A |
| Load capacity | 3700VA |
| Output | |
| Max current draw | 16A |
| Number of power socket outlets | 8 IEC 60320 C13 1 IEC 60320 C19 |
| Protection type | Without circuit breaker |
| Conformance | |
| Product certifications | cUL listed CE UL listed |
| Standards | EN 55022 class A FCC part 15 class A |
| Environmental | |
| Ambient air temperature for operation | -5…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95% |
| Storage altitude | 0.00…15240.00 m |
- Công nghệ Nhật Bản.
- Bảo hành: 24 tháng.
