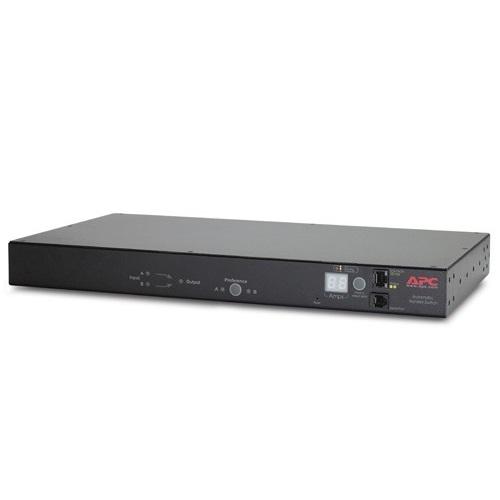

RACK ATS APC AP7721
- Rack ATS, 10A/230V, 12A/208V, C14 in, (12) C13 out.
- Provides redundant rack mount power to single-corded equipment.
- Rack Height: 1U.
- Output Connections: (12) IEC 320 C13 (Battery Backup).
- Nominal Input Voltage: 200V, 208V, 230V.
- Input Connections: IEC-320 C14.
Technical Specifications
| Output | |
| Maximum Total Current Draw | 230V |
| Input | |
| Input frequency | 47 - 63 Hz |
| Maximum Input Current | 10A |
| Maximum Line Current | 10A |
| Physical | |
| Dimension (Height x Width x Depth) | 44 x 432 x 22.9 mm |
| Net Weight | 3.93 kg |
| Color | Black |
| Environmental | |
| Operating Temperature | -5 - 45 °C |
| Operating Relative Humidity | 5 - 95 % |
| Operating Elevation | 0-3000meters |
| Storage Temperature | -25 - 65 °C |
| Storage Relative Humidity | 5 - 95 % |
| Storage Elevation | 0-15000meters |
- Sản xuất tại Trung Quốc, Phillippines và Ấn Độ.
- Bảo hành: 2 năm.
