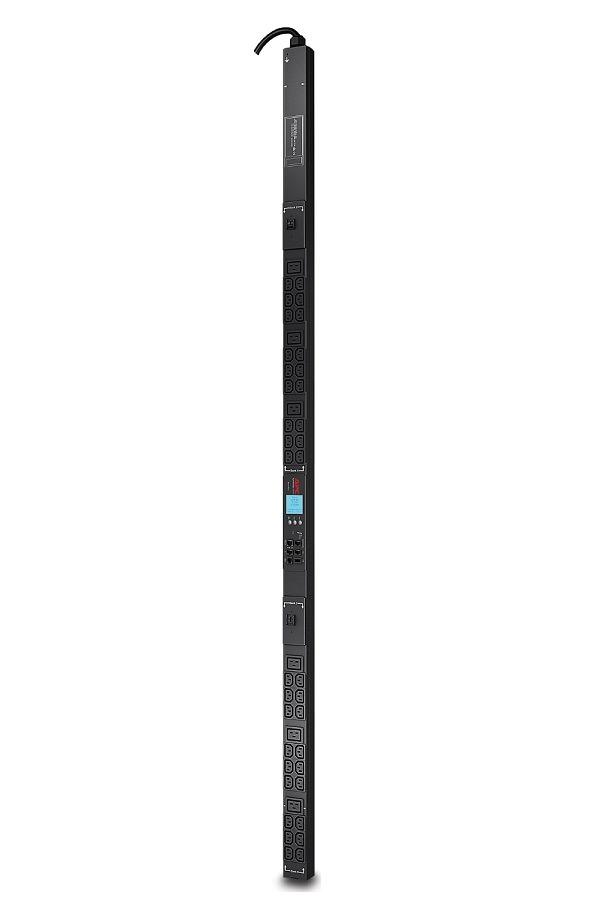

Rack PDU 2G APC AP8853
- Rack PDU 2G, Metered, ZeroU, 32A, 230V, (36) C13 & (6) C19.
- Nominal Output Voltage: 230V.
- Maximum Total Current Draw: 32.
- Output Connections: (36) IEC 320 C13 (Battery Backup)/(6) IEC 320 C19 (Battery Backup).
- Input Connections: IEC 309 32A 2P+E.
Technical Specifications
| Output | |
| Nominal Output Voltage | 230V |
| Overload Protection | Yes |
| Maximum Total Current Draw | 32 |
| Output Connections | (36) IEC 320 C13 (Battery Backup) (6) IEC 320 C19 (Battery Backup) |
| Input | |
| Nominal Input Voltage | 200V, 208V, 230V |
| Input frequency | 50/60 Hz |
| Input Connections | IEC 309 32A 2P+E |
| Cord Length | 3 meters |
| Acceptable Input Voltage | 220-240VAC |
| Number of Power Cords | 1 |
| Load Capacity | 7400VA |
| Maximum Input Current | 32A |
| Maximum Line Current | 32A |
| Physical | |
| Dimension (Height x Width x Depth) | 1791 x 56 x 44mm |
| Net Weight | 6.93 kg |
| Color | Black |
| Units per Pallet | 48.0 |
| Environmental | |
| Operating Temperature | -5 - 45 °C |
| Operating Relative Humidity | 5 - 95 % |
| Operating Elevation | 0-3000meters |
| Storage Temperature | -25 - 65 °C |
| Storage Relative Humidity | 5 - 95 % |
| Storage Elevation | 0-15000meters |
- Sản xuất tại Trung Quốc, Phillippines và Ấn Độ.
- Bảo hành: 2 năm.
