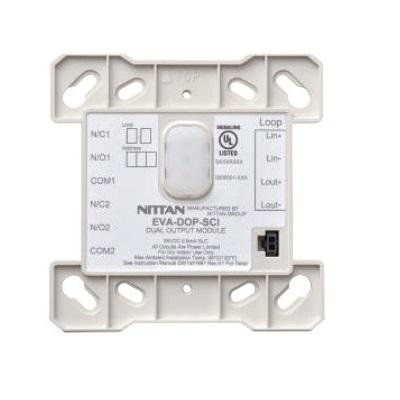

Relay Dual Output Module with SCI NITTAN EVA-DOP-SCI
- EVA-DOP-SCI Dual Output Module with Short Circuit Isolator is an addressable dual output module that provides two dry contacts. The contact rating is 2A at 30 VDC. The status of each dry contact is monitored and controlled by a control panel.
- Two Form-C relay contacts.
- Swithing capacity 2A@30VDC each.
- SCI function.
- Status indicator LED.
- Address settable from 001 to 254 by a dedicated programmer.
- Single loop address.
- Low standby current (0.6mA).
- SEMS screws for easy wiring.
- Mounts to optional 4-inch square electrical box.
Thông số kỹ thuật
| Model | EVA-DOP-SCI |
| SLC Applied Voltage | Rated Range 20 to 38 VDC |
| SLC Current Consumption | Standby 0.6 mA Activated 3.3 mA (max) |
| SLC Line Impedance | Up to 50 Ω |
| Relay (Programmable) | Switching Capacity 2 A@ 30 VDC |
| SCI On Resistance | 0.2 Ω (max) |
| SCI Fault Detection Threshold | 10V (min) |
| SCI Isolation Current | 22 mA (max) |
| Visual Indicator (Status LED) | Polling LED (GREEN) Output LED (RED) SCI LED (YELLOW) |
| Ambient Installation Temperature | 0 °C to 49 °C (32 °F to 120 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Max Relative Humidity | Up to 93 % RH, non-condensing |
| Environment | Indoor dry use only |
| Max quantity per loop | 127 units |
| Terminal | Screw AWG12 to 22 |
| Address Setting | EVA-AD2 Address Programmer |
| Dimensions | H 124 mm x W 124 mm x D 34.5 mm |
| Weight | Approximately 167 g |
| Conformity | UL864 |
- Bảo hành: 12 tháng.
