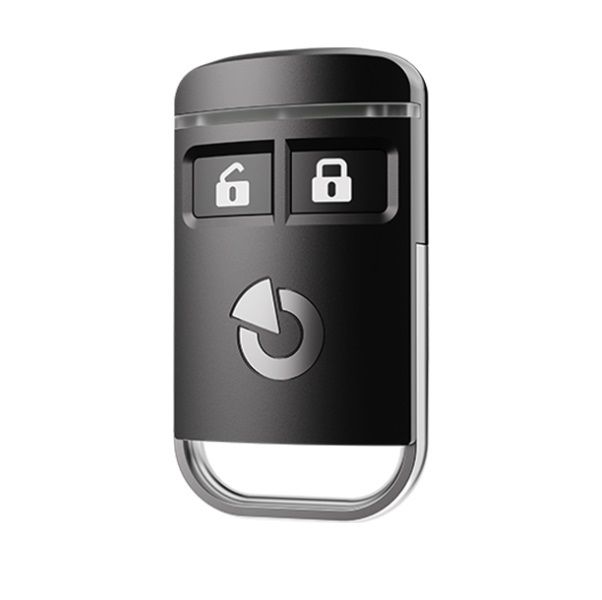

Remote hai chiều JABLOTRON JA-152J MS II
- Remote hai chiều, hai phím bấm cao cấp.
- Nguồn cấp: 1xPin CR 2032 (3.0V/0.2A).
- Kích thước: 63 x 36 x 15 mm.
- Giao thức Jablotron protocol.
- Phạm vi giao tiếp 100m (không gian mở).
- Môi trường lắp đặt trong nhà.
Thông số kỹ thuật
| Compatible with | FW of the JA-11xR module LR6x613+ FW of the control panel LJ (MD) 60416+ F-Link 1.4.0+ |
| Power - 1x lithium battery | Type CR 2032 (3.0 V/0.2 Ah) (Power supply C type according to EN 50131-6) |
| Current consumption | - Nominal consumption: 1,1 μA - Maximal consumption: 33 mA |
| Low battery voltage detection | ≤ 2.2 V |
| Typical battery lifetime | Approx. 2 years (10 activations/day) |
| Communication frequency | 868.1MHz, JABLOTRON protocol |
| Maximum radiofrequency output (ERP) | 1.2mW |
| RF range | Approx. 100 m (line of sight) |
| Dimensions | 63 x 36 x 15 mm |
| Weight without the battery | 32g |
| Classification | Security grade 2/Environmental class II (According to EN 50131-10) |
| Environmental | Indoor general |
| Operational temperature range | -10°C to +40°C |
| Average humidity | 75 % RH, non-condensing |
| Number of unique production codes | >1 Million |
| Certification body | Trezor Test s.r.o. (no. 3025) |
| Additionaly in compliance with | ETSI EN 300 220-1,-2, EN 50130-4, EN 50130-4, EN 550, EN 62368-1, EN 50581, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6 |
| Can be operated according to | ERC REC 70-03 |
- Bảo hành: 5 năm.
